2015 Haas EC-400 CNC Horizontal Machining Center

2015 Haas EC-400 CNC Horizontal Machining Center

Sell Your Haas EC-400
513-771-2111
sales@gaec.com
Request Financing
Sell Your Haas EC-400

Overview

Type:
Machining Centers, Horizontal
Manufacturer:
Haas
Model:
EC-400
Year:
2015
Stock #:
Q11774
Serial #:
2054698

Description

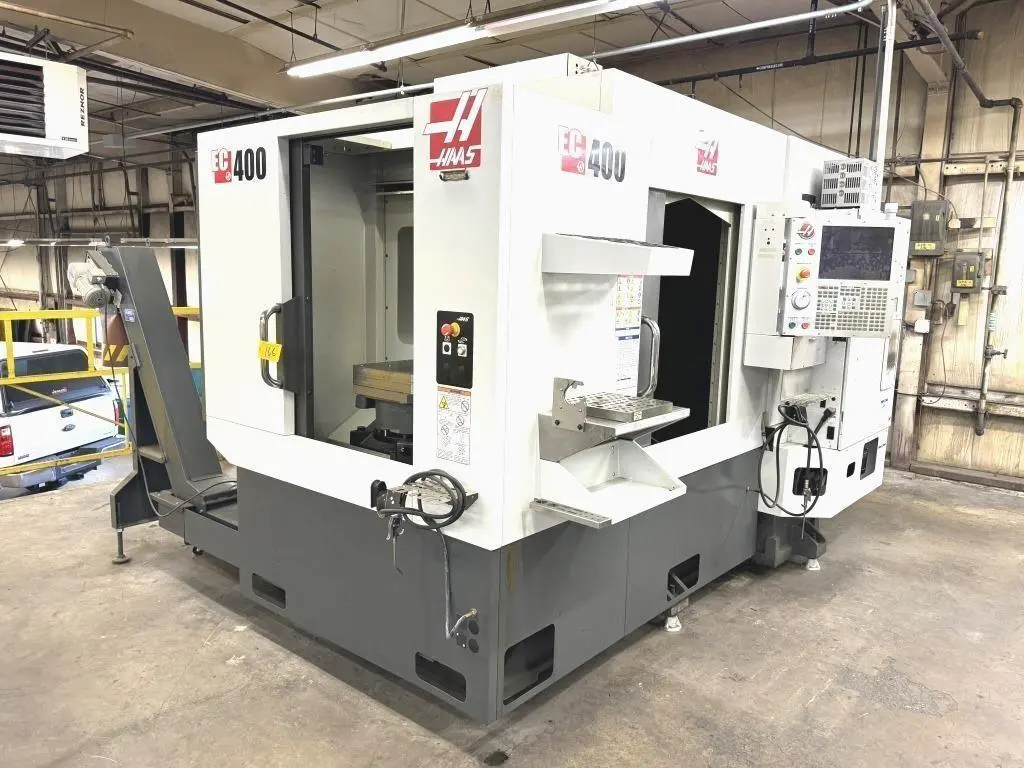

HAAS EC-400 CNC HORIZONTAL MACHINING CENTER, Haas CNC Control, (2) Full Contouring 15.75" x 15.75" Pallets, X=20", Y=20", Z=20", CAT 40 Taper, 8000 Max Spindle RPM, 40 ATC, Prog Coolant Nozzle, Chip Conveyor & Coolant Tank, New 2015.

Haas CNC Control, (2) Full Contouring 15.75" Square Pallets, 8000 RPM Spindle, 40 Station Automatic Tool Changer, Programmable Coolant Nozzle & Flood Coolant, Chip Conveyor & Coolant System.

ControlHaas CNCHaas CNC
# Axis44
Table-L15.75"400.05 mm
Table-W15.75"400.05 mm
Max Table Load Capacity1,000 lb453.6 kg
# Pallets22
Pallet-L15.75"400.05 mm
Pallet-W15.75"400.05 mm
Max Pallet Load Capacity1,000 lb453.6 kg
X-Axis (Cross Travel)20"508 mm
Y-Axis (Vertical Travel)20"508 mm
Z-Axis (Spindle Travel)20"508 mm
B-Axis (Pallet Indexing)Full Contouring0°
Feed Rate, All Axes500 in/min.12.7 m/min.
Rapid Traverse Rate, All Axes1,000 in/min.25.4 m/min.
Spindle Power20 hp14.9 kW
Spindle TaperCAT 40CAT 40
Max Spindle Speed8,000 RPM8,000 RPM
Max Spindle Torque75 FT-LB @ 1400 RPM101.7 N-m
Automatic Tool Changer Capacity (ATC)4040
Electrics220/3/60220/3/60
Dimensions148" x 159" x 102"148" x 159" x 102"
Weight24,480 LBS24,480 LBS

CONDITION: This Machine Appears to be in Excellent Condition !

F.O.B. Cincinnati, OH
