6" x 18" Victor 618EVS Precision Toolroom Lathe

6" x 18" Victor 618EVS Precision Toolroom Lathe

Sell Your Victor 618EVS
513-771-2111
sales@gaec.com
Request Financing
Sell Your Victor 618EVS

Overview

Type:
Lathes, Precision
Manufacturer:
Victor
Model:
618EVS
Year:
2005
Stock #:
Q11775
Serial #:
9312686

Description

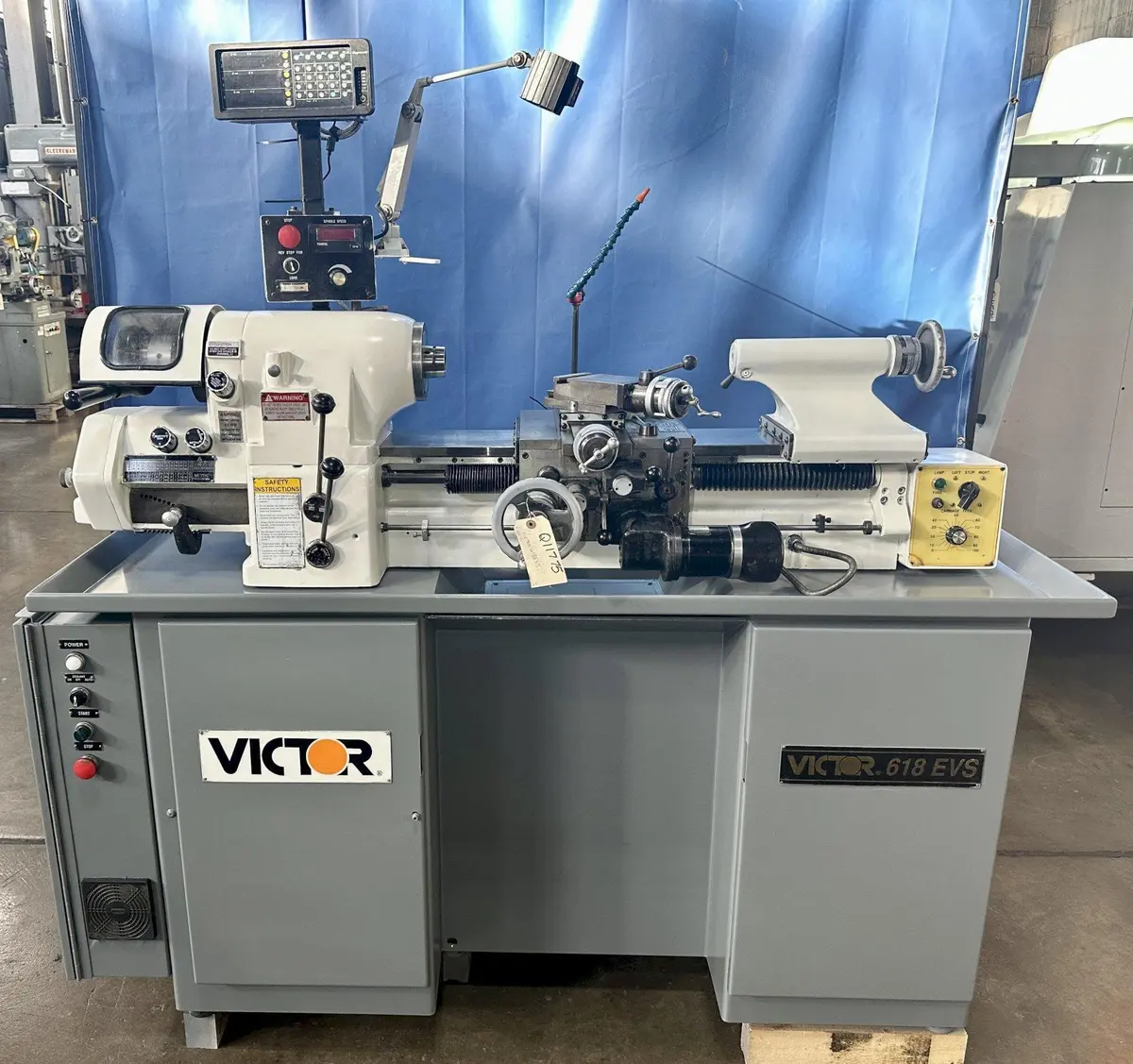

6" x 18" VICTOR 618EVS PRECISION TOOLROOM LATHE, DRO, 11" Swing Over Bed, 6" Swing Over Cross Slide, 18" Between Centers, Collet Chuck, Compound Cross Slide, 4000 RPM Variable Speed Spindle, 3 HP, New 2005.

Digital Read Out, 5C Collet Chuck, Variable Frequency Spindle (4,000 RPM), Compound Cross Slide, English and Metric Threading, Coolant Pump.

* High Quality Precision Tool Room Lathe, similar to a Monarch EE

Max Swing Over Bed11"279.4 mm
Max Swing Over Carriage9"228.6 mm
Max Swing Over Cross Slide6"152.4 mm
Distance Between Centers18"457.2 mm
Spindle Thru Hole Capacity with Round Collets1-1/16" (Round 5C Collet)26.988 mm
Spindle Thru Hole Capacity with Hex Collets0.875"22.225 mm
Spindle Thru Hole Capacity with Square 5C Collets1.25"31.75 mm
Spindle Speed Range1 - 3,000 RPM for 6" 3-Jaw Chuck / 1 - 4,000 RPM for 5C Collet0 RPM
Max Spindle Speed for Chuck3,000 RPM3,000 RPM
Max Spindle Speed for Collet4,000 RPM4,000 RPM
# of Threads - Inch3636
Inch Threads11 - 108 TPI11 - 108 TPI
Tailstock Spindle Travel3.75"95.25 mm
Tailstock Taper#2 MT#2 MT
Motor Power3 hp2.2 kW
Electric220/3/60220/3/60
Dimensions73" x 30" x 67"73" x 30" x 67"
Weight2,530 lbs2,530 lbs

CONDITION: This Machine Appears to be in Excellent Condition !

F.O.B. Cincinnati, OH
