2004 ACER EMILL 3VKH | Millers, Vertical

Address: 11925 Enterprise Dr,, Cincinnati, OH, 45241-1513, US
Telephone: 513-771-2111

Overview

Type:

Millers, Vertical

Manufacturer:

Model:

EMILL 3VKH

Year:

2004

Stock #:

Q11776

Status:

For Sale

Serial #:

N4010030S9

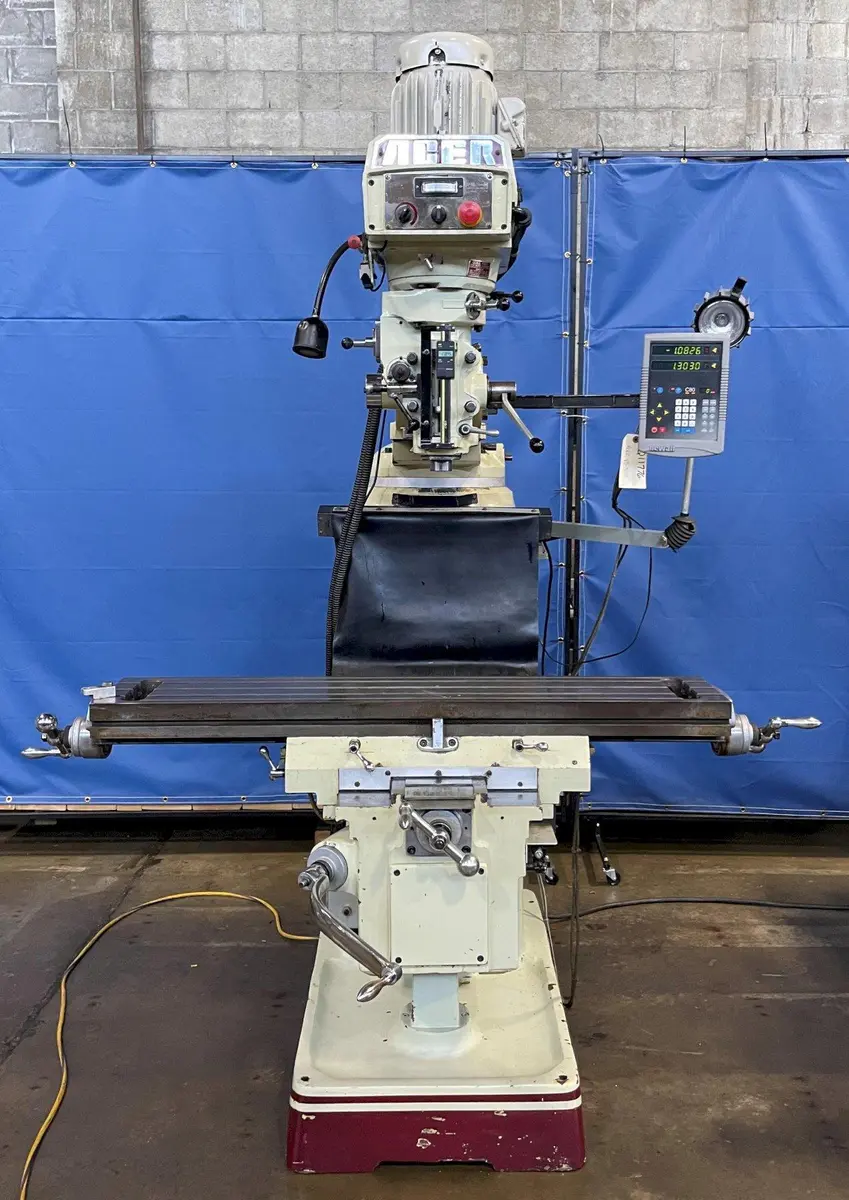

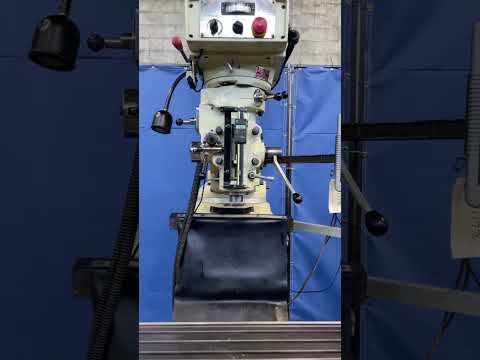

ACER eMill 3VKH VERTICAL MILL, 2-Axis Newall C-80 DRO, 10" x 50" Table, 3 HP Motor, 4500 RPM, New 2004.

Newall C-80 DRO

ImperialMetric

Table-L	50"	1,270 mm
Table-W	10"	254 mm
Table Working Surface-L	50"	1,270 mm
Table Working Surface-W	10"	254 mm
Max Weight of Workpiece	850 lbs	385.6 kg
X-Axis (Longit. Table Travel Power Feed)	34"	863.6 mm
Y-Axis (Cross Saddle Travel)	17"	431.8 mm
W-Axis (Vertical Knee Travel)	19"	482.6 mm
Z-Axis (Vertical Quill Travel)	5"	127 mm
Ram Travel	20"	508 mm
Spindle Taper	R-8	R-8
Spindle Speeds	60 - 4,500 RPM	4,500 RPM
Quill Feeds	0.0015 - 0.006 IPR / Rev	0.0015 - 0.006 IPR / Rev
Spindle Power	3 hp	2.2 kW
Electrics	220/440/3/60	220/440/3/60
Dimensions	70" x 66" x 95"	70" x 66" x 95"
Weight	3300 LBS	3300 LBS
