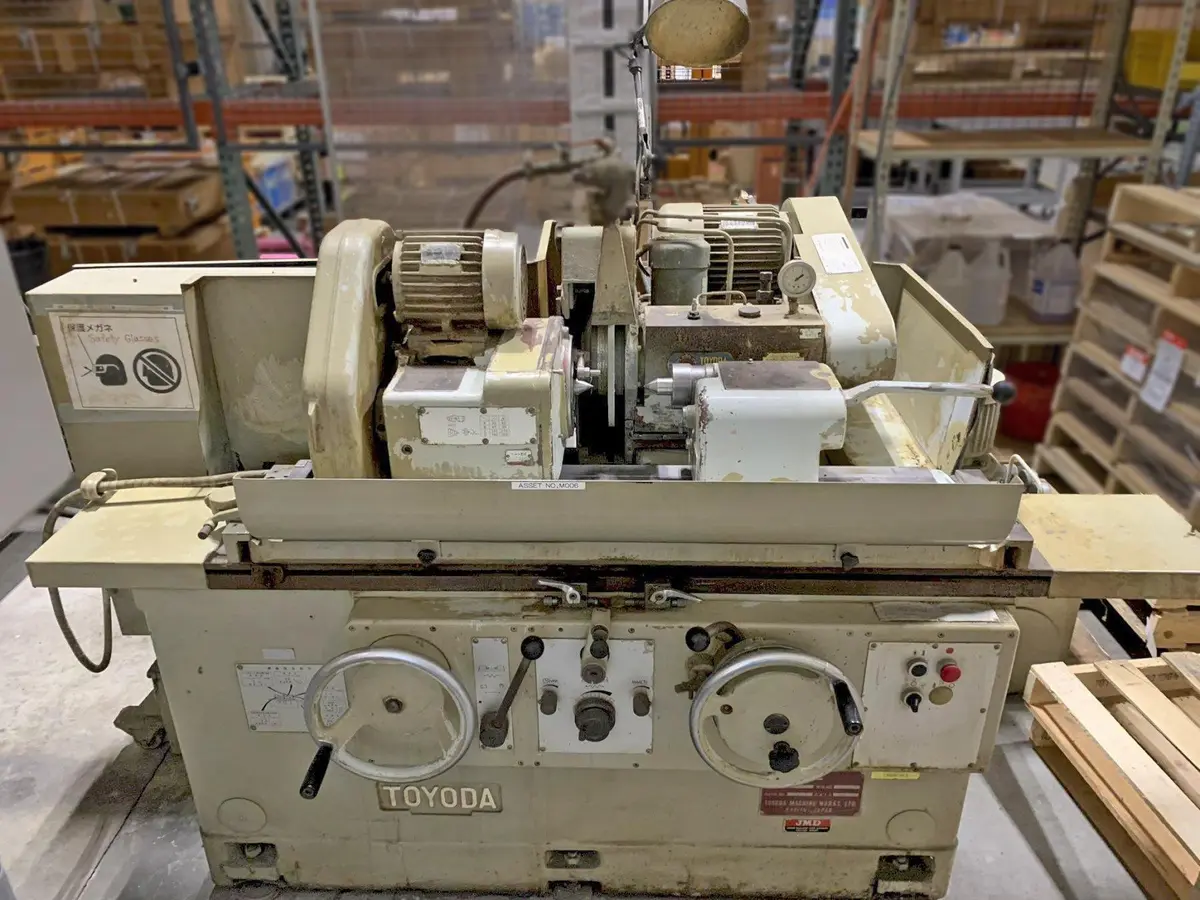

12" x 20" Toyoda GOS32X50 Cylindrical Grinder

12" x 20" Toyoda GOS32X50 Cylindrical Grinder

Sell Your Toyoda GOS32X50
513-771-2111
sales@gaec.com
Request Financing
Sell Your Toyoda GOS32X50

Overview

Type:
Grinders, Cylindrical (Incl Plain & Angle Head)
Manufacturer:
Toyoda
Model:
GOS32X50
Year:
1985
Stock #:
Q11779
Serial #:
RB7823

Description

12" x 20" TOYODA GOS32X50 CYLINDRICAL GRINDER, 12.6" Swing, 20" Between Centers, 16" Diameter Wheel, 5 HP Spindle, Coolant System, New 1985.

12.6" Swing, 20" Between Centers, 16" Diameter Wheel, 5 HP Spindle, Coolant System.

Plain or Angle HeadPlainPlain
Max Swing Over Table12.59"319.79 mm
Max Distance Between Centers19.68"499.87 mm
Max Load Between Centers330 lbs149.7 kg
Max Grinding Wheel Diameter16"406.4 mm
Max Grinding Wheel Width3"76.2 mm
Grinding Wheel Hole Diameter1.1"27.94 mm
Wheelhead Infeed Rate1.97 - 157 IPM4 m/min.
Wheelhead Infeed Rapid Traverse Stroke1.57"39.878 mm
Wheelhead Swivel Range12.5°12.5°
Wheelhead Power5.5 hp4.1 kW
Wheelhead Surface Speed6,500 SFPM1,981,204 SMMPM
Workhead Power.27 / .54 hp0.4 kW
Workhead Speed30 - 360 RPM360 RPM
Dimensions101" x 77" x 76"101" x 77" x 76"
Weight6,400 LBS6,400 LBS

CONDITION: This Machine Appears to be in Very Good Condition !

F.O.B. Cincinnati, OH
