Equipment
EDMs
EDM Sinkers
2014 MAKINO EDNC85

2014 MAKINO EDNC85 | EDM Sinkers

Sell Your MAKINO EDNC85
513-771-2111
sales@gaec.com
Request Financing
Sell Your MAKINO EDNC85

Overview

Type:
EDM Sinkers
Manufacturer:
MAKINO
Model:
EDNC85
Year:
2014
Stock #:
Q11783
Status:
For Sale
Serial #:
716

Description

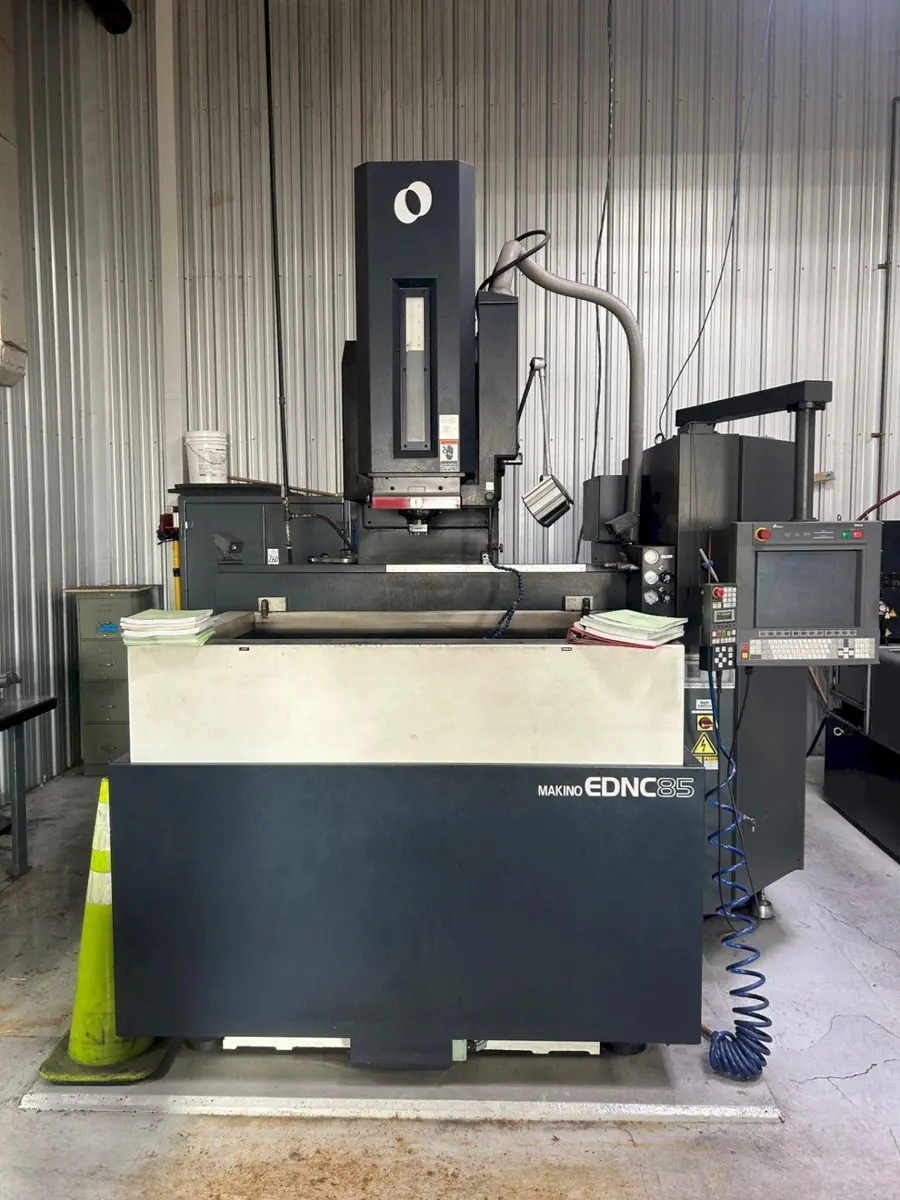

MAKINO EDNC85 CNC SINKER EDM, Makino MGH6 CNC Control, 43.3" x 27.6" Table, X=31.5", Y=19.7", Z=15.7", 6615 LB Max Workpiece Weight, 55.1" x 35.4" x 19.7" Tank Size, System 3R Electrode Holder, New 2014.

Makino MGH6 CNC Control, System 3R Electrode Holder, Drop Tank Design, 6" x 12" Walker Magnetic Chuck Bolted to Table, Fluid Chiller, Transformer.

ControlCNC (Makino MGH6 CNC Control)CNC (Makino MGH6 CNC Control)
ControlMakino MGH6 CNCMakino MGH6 CNC
Internal Work Tank Width55.1"1,399.5 mm
Internal Work Tank Depth35.4"899.16 mm
Internal Work Tank Height19.68"499.87 mm
Table-L43.3"1,099.8 mm
Table-W27.55"699.77 mm
Max Workpiece Weight6,615 lb3,000.5 kg
Dielectric Fluid Capacity317 gal1,200 L
X-Axis (Longitudinal Travel)31.49"799.85 mm
Y-Axis (Cross Travel)19.68"499.87 mm
Z-Axis (Ram Travel)15.74"399.8 mm
X-Axis Rapid Traverse Rate16.4 ft/min.5 m/min.
C-Axis (Head Rotation)360°360°
Electrode Plate-L11.81"299.97 mm
Electrode Plate-W11.81"299.97 mm
Max Electrode Weight661 lb299.8 kg
Dielectric Fluid Level Adjustment Range (From Top of Table)17.71"449.83 mm
Feed Least Input0"0.001 mm
Dimensions120 x 144120 x 144
Weight1500015000

CONDITION: This Machine Appears to be in Excellent Condition ! F.O.B. Cincinnati, OH
