CALPEDA BC41/1S | Pumps, Centrifugal

Sell Your CALPEDA BC41/1S
513-771-2111
sales@gaec.com
$479.00 USD
Sell Your CALPEDA BC41/1S

Overview

Type:
Pumps, Centrifugal
Manufacturer:
CALPEDA
Model:
BC41/1S
Stock #:
Q11807
Status:
For Sale

Description

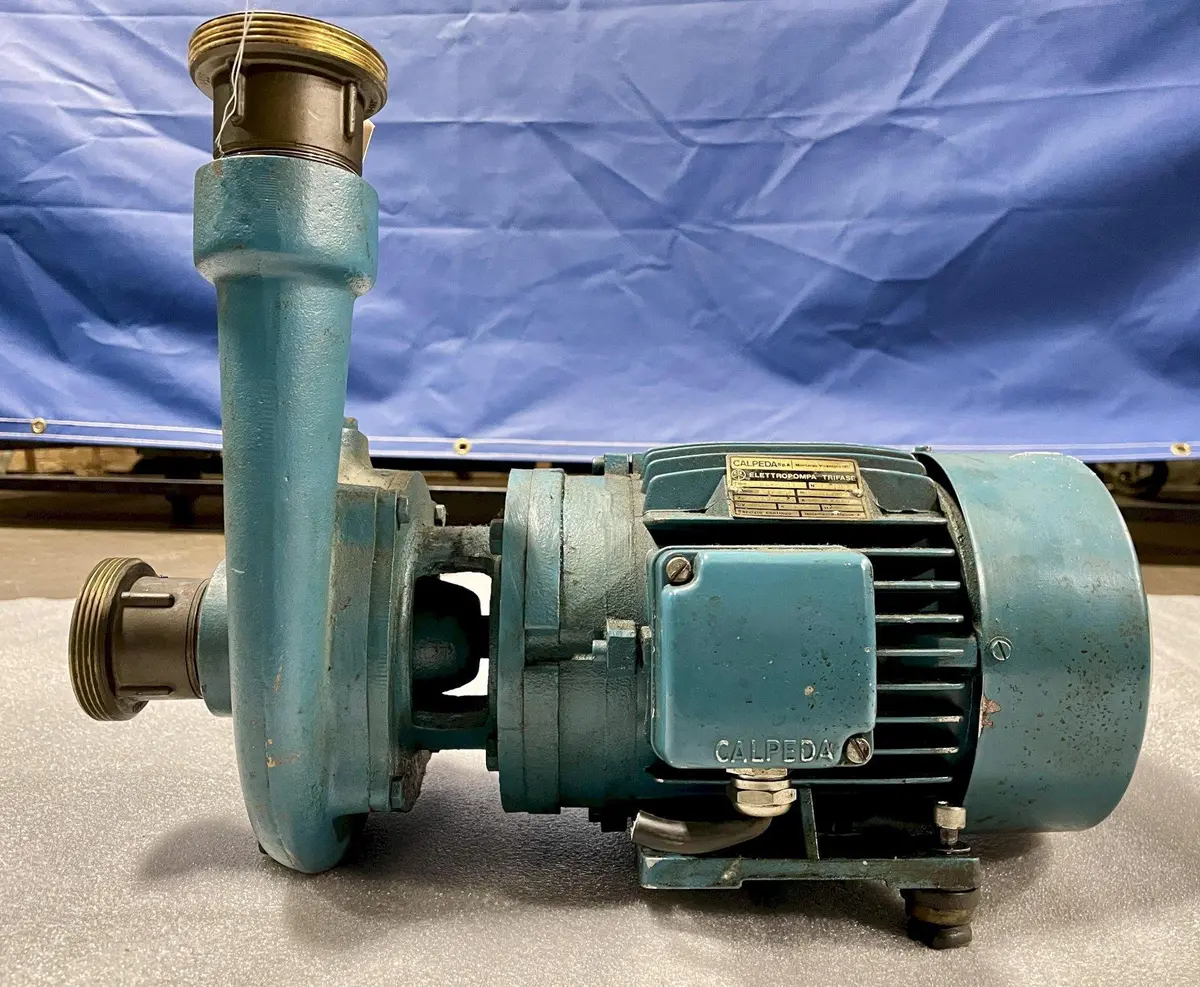

CALPEDA BC41/1s CENTRIFUGAL PUMP with Open Impeller

Flow Rate66.043 gpm
Max Head88.58'27 m
Frequency60 Hz60 Hz
Motor Phase33
Insulation ClassF (Max 155° C / 311° F)F (Max 155° C / 311° F)
Motor Power2 hp1.5 kW
Motor Speed3,500 RPM3,500 RPM
YY Voltage220 V220 V
YY Current7.5 A7.5 A
Y Voltage380 V380 V
Y Current4.3 A4.3 A
Dimensions19 x 10 x 1519 x 10 x 15
Weight54 LBS54 LBS

Flow Rate (Liters per Minute): 60 - 250 L/min
Total Head: 27 / 18 m
Frequency: 60 Hz
Motor Phase: 3-Phase
Insulation Class: F (Max 155° C)
Motor Horsepower: 2 HP
Motor Speed: 3,500 RPM
YY Voltage: 220 V
YY Current (Amps): 7.5 A
Y Voltage: 380 V
Y Current (Amps): 4.3 A
Approximate Dimensions: 19" x 10"
Approximate Height: 15"
Approximate Weight: 54 LBS

CONDITION: This Pump Appears to be in Very Good Condition. F.O.B. Cincinnati, OH
