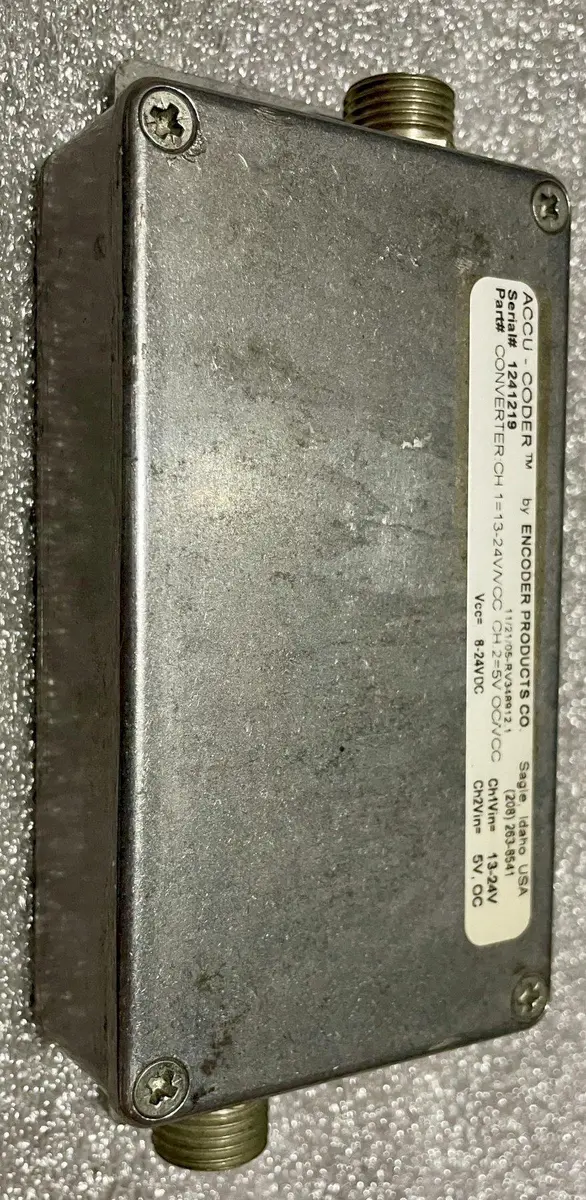

ENCODER PRODUCTS ACCU-CODER 100020-9 RX/TX CONVERTER
FEATURES:
The RX/TX Converter converts a Push-Pull or NPN encoder output to an RS422 compatible differential Line Driver output. In addition, it will also convert Line Driver/RS422 encoder output to single ended signals (PushPull) for compatibility with certain PLC's.
Each converter has two independent channels: Channel 1 is a differential Line Receiver on the input. It then converts these differential signals (A, A’, B, B’, Z, Z’) to Push-Pull output signals (A, B, Z), with an amplitude equivalent to Vcc.
Channel 2 will convert single ended signals from a Push-Pull or NPN Open Collector encoder to Differential Line Driver signals. Differential Line Driver signals include complementary outputs A’, B’, and Z’ which offer greater immunity to electrical noise, signal distortion, and interference, especially with long cable runs.
Type: RX/TX Converter
Supply Source (Vcc): 5 to 24 VDC
Max Current Consumption: 20 mA (plus encoder and output load requirements)
Max Frequency: Up to 1 MHz
Enclosure Rating: IP54 (dust proof)
Input Voltage: Channel 1: 13 - 24 VDC
Input Voltage: Channel 2: 5 VDC
Output Voltage: Channel 1: Vcc
Output Voltage: Channel 2: Vcc
Max Output Current: 30 mA/Channel
Approximate Dimensions: 6" x 3"
Approximate Height: 2"
Approximate Weight: 5 LBS
CONDITION: This Converter Appears to be in Excellent Condition.
Located in Cincinnati, OH
