Overview

Type:
Machining Centers, Vertical
Manufacturer:
Brother
Model:
TC-32BN QT
Year:
2014
Stock #:
Q11838
Serial #:
121993

Description

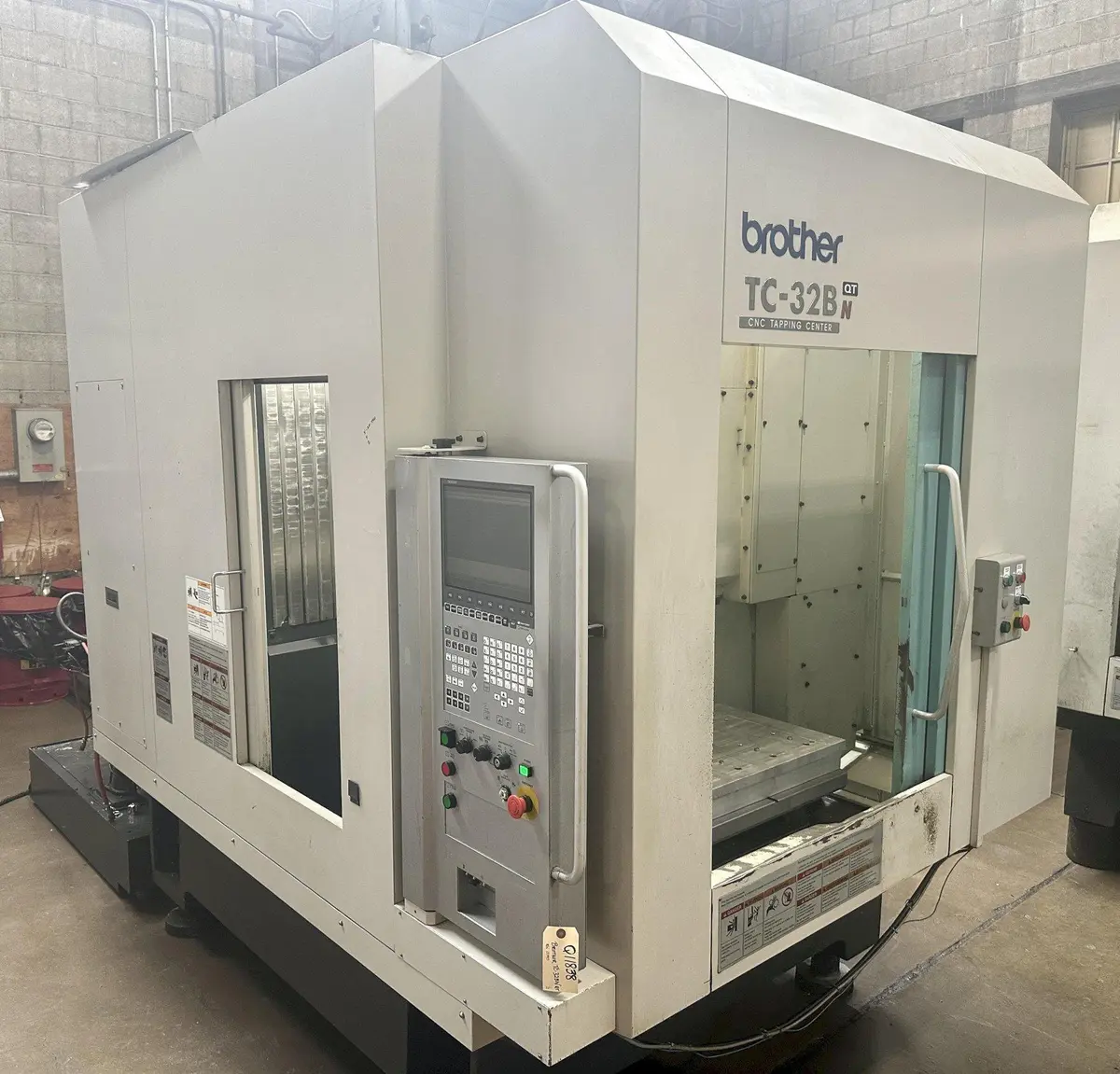

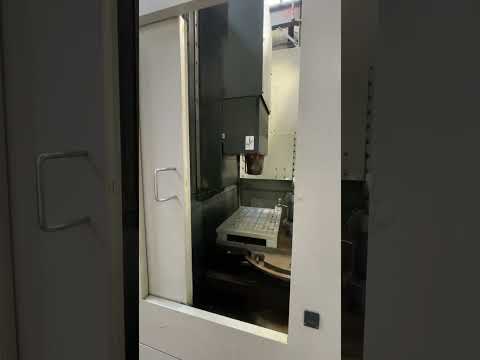

BROTHER TC-32BN QT CNC VERTICAL MACHINING CENTER, Brother B00 CNC Control, 23.6" x 16.7" Table, X=21.7", Y=15.7", Z=16.3", BT30 Taper, 16000 Max Spindle RPM, Chip Conveyor & Coolant System, New 2014.

Brother B00 CNC Control, 16000 RPM Spindle, BT30 Spindle Taper, 26 Station Tool Changer, Chip Conveyor & Coolant System.

CNC ControlBrother B00 CNCBrother B00 CNC
# Axis33
Table-L16.7"424.18 mm
Table-W23.6"599.44 mm
Max Table Load Capacity441 lb (one side)200 kg
X-Axis (Longitudinal Travel)21.7"551.18 mm
Y-Axis (Cross Travel)15.7"398.78 mm
Z-Axis (Vertical Travel)16.3"414.02 mm
Max Clearance Tabletop to Spindle Nose25.4"645.16 mm
Feed Rates (X, Y, & Z Axis)0.04 - 787.4 in/min.20 m/min.
Rapid Traverse Rate (X, Y, & Z Axis)2,756 in/min.70 m/min.
Spindle Power13.3/9.7 hp9.9 kW
Spindle Speed Range16 - 16,000 RPM16,000 RPM
Spindle TaperBT30BT30
Coolant Through SpindleNoNo
Automatic Tool Changer Capacity (ATC)2626
Automatic Tool Changer StyleDouble ArmDouble Arm
Tool Change Time2 sec.2 sec.
Electrics230/3/60230/3/60
Dimensions74.4" x 144.4" x 92.9"74.4" x 144.4" x 92.9"
Weight10,143 LBS10,143 LBS

CONDITION: This Machine Appears to be in Very Good Condition !

F.O.B. Cincinnati, OH
