Chevalier ALIC-1 Manual Ram Portable Tool Type EDM

Chevalier ALIC-1 Manual Ram Portable Tool Type EDM

Sell Your Chevalier ALIC-1
513-771-2111
sales@gaec.com
Sell Your Chevalier ALIC-1

Overview

Type:
EDM Sinkers
Manufacturer:
Chevalier
Model:
ALIC-1
Year:
2001
Stock #:
Q11886
Serial #:
0210002

Description

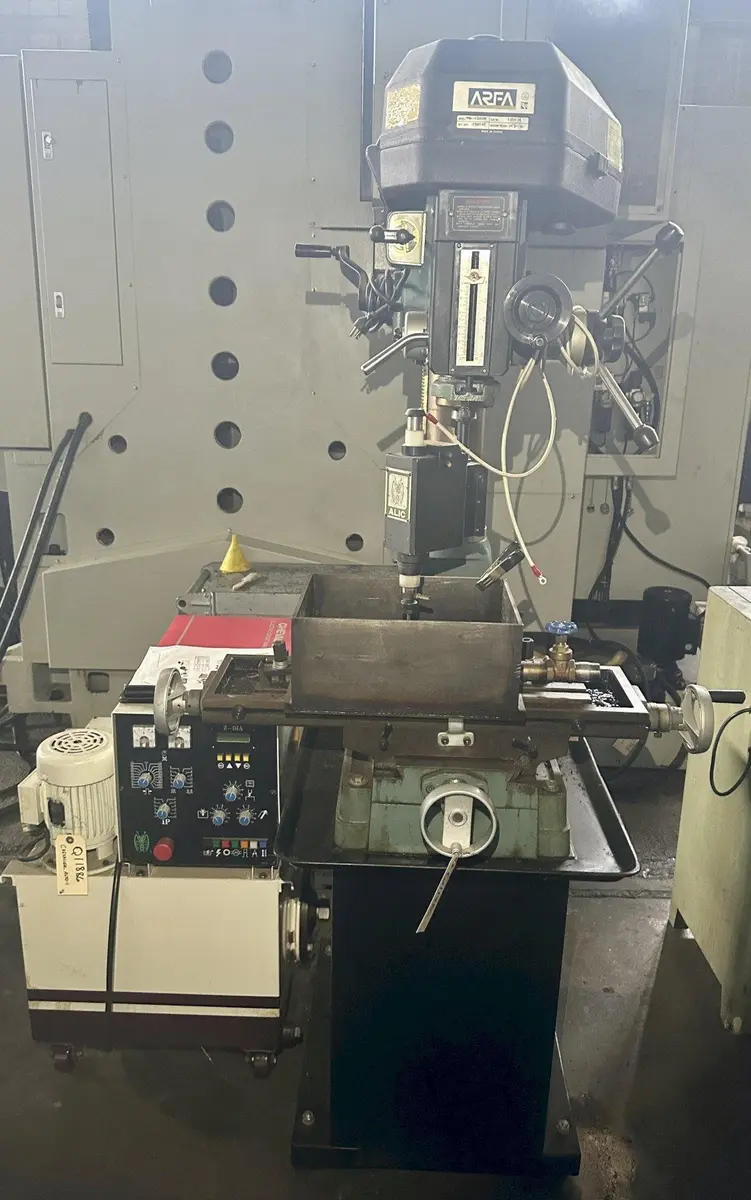

CHEVALIER ALIC-1 MANUAL RAM PORTABLE TOOL TYPE EDM, ARFA MMD-9100 Milling Machine with an ALIC-1 EDM Tool (15AMP) Mounted to Spindle Powered by a Chevalier DT-168 Portable EDM Power Unit, Travels X=14", Y=8", Z=5", Max Work Piece Dimensions 13.75" x 10.75" x 5.5", Magnetic Chuck, New 2001.

ARFA MMD-91002K Milling Machine with an Alic-1 EDM Tool Mounted to Spindle powered by a Chevalier DT168 Power Unit, 15 Amp Max Processing Current, 5.25" x 2.5" Magnetic Chuck, Welded Work Tank 13.75" x 10.5" x 5.5" with Fluid Return.

ControlCNC (220/3/60)CNC (220/3/60)
Internal Work Tank Width13.75"349.25 mm
Internal Work Tank Depth10.5"266.7 mm
Internal Work Tank Height5.5"139.7 mm
Table-L13.75"349.25 mm
Table-W10.5"266.7 mm
Dielectric Fluid Capacity24 gal90.8 L
Dielectric Tank Capacity24 gal90.8 L
X-Axis (Longitudinal Travel)14"355.6 mm
Y-Axis (Cross Travel)8"203.2 mm
Z-Axis (Ram Travel)5.5"139.7 mm
Electrode Quill Stroke2.3125"58.738 mm
Max Electrode Weight22 lb10 kg
Max Process Current15 A15 A
Electrics220/3/60220/3/60
Power Supplier Unit - ModelDT-168DT-168
Power Supplier Unit - Max Machining Current15 A15 A
Dimensions60" x 40" x 81"60" x 40" x 81"
Weight2500 LBS2500 LBS

CONDITION: This Machine Appears to be in Excellent Condition !

F.O.B. Cincinnati, OH
