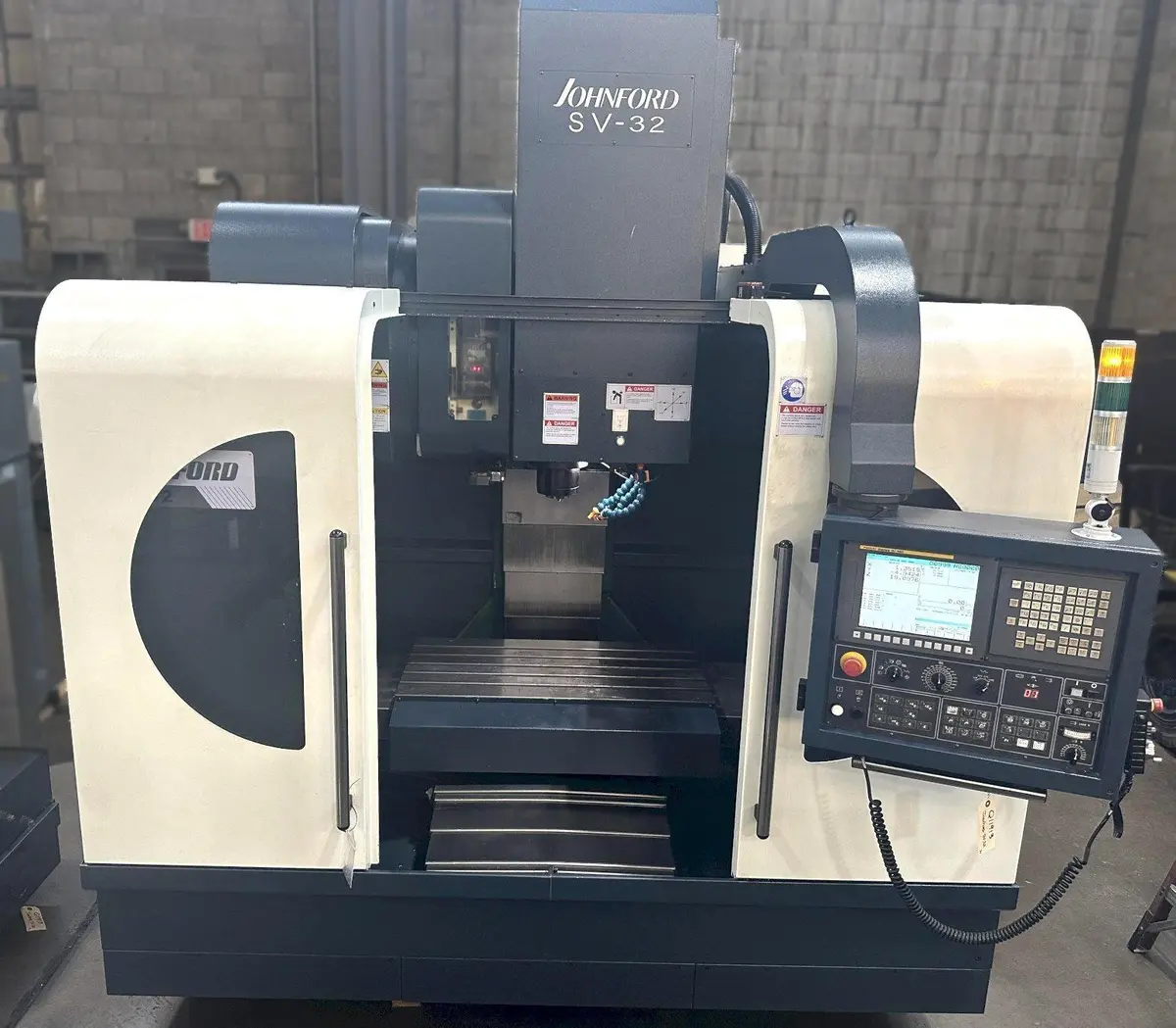

Johnford SV-32 CNC Vertical Machining Center

Johnford SV-32 CNC Vertical Machining Center

Sell Your Johnford SV-32
513-771-2111
sales@gaec.com
Request Financing
Sell Your Johnford SV-32

Overview

Type:
Machining Centers, Vertical
Manufacturer:
Johnford
Model:
SV-32
Year:
2016
Stock #:
Q11913
Serial #:
MLA160696

Description

JOHNFORD SV-32 CNC VERTICAL MACHINING CENTER, Fanuc Oi-MD CNC Control, 40" x 20" Table, X=32", Y=20", Z=24", #40 Taper, 15 HP, 10000 Max Spindle RPM, 24 ATC, Chip Conveyor & Coolant System, New 2016.

Fanuc Oi-MD CNC Control, Remote Manual Pulse Generator, 10000 RPM Spindle, 24 Station Automatic Tool Changer, Work Light, Full Enclosure Splash Guard, Chip Conveyor & Coolant System.

* Excellent Condition, Only 1,789 Cutting Hours

CNC ControlFanuc Oi-MD CNCFanuc Oi-MD CNC
# Axis33
Table-L39.4"1,000.8 mm
Table-W19.7"500.38 mm
Max Table Load Capacity1,320 lb598.7 kg
X-Axis (Longitudinal Travel)31.5"800.1 mm
Y-Axis (Cross Travel)19.7"500.38 mm
Z-Axis (Vertical Travel)24"609.6 mm
Max Clearance Tabletop to Spindle Nose28"711.2 mm
Min Clearance Tabletop to Spindle Nose3.94"100.08 mm
Distance Spindle Center to Column21.7"551.18 mm
X-Axis Rapid Traverse Rate1,181 in/min.30 m/min.
Y-Axis Rapid Traverse Rate1,181 in/min.30 m/min.
Z-Axis Rapid Traverse Rate787 in/min.20 m/min.
Spindle Power15 hp11.2 kW
Max Spindle Speed10,000 RPM10,000 RPM
Spindle TaperCAT 40CAT 40
Automatic Tool Changer Capacity (ATC)2424
Automatic Tool Changer StyleSide Mount Swing-ArmSide Mount Swing-Arm
Machine Hours17891789
Electrics220/3/60220/3/60
Dimensions92.5" x 86.6" x 118.4"92.5" x 86.6" x 118.4"
Weight14,200 LBS14,200 LBS

CONDITION: This Machine Appears to be in Excellent Condition !

F.O.B. Cincinnati, OH
