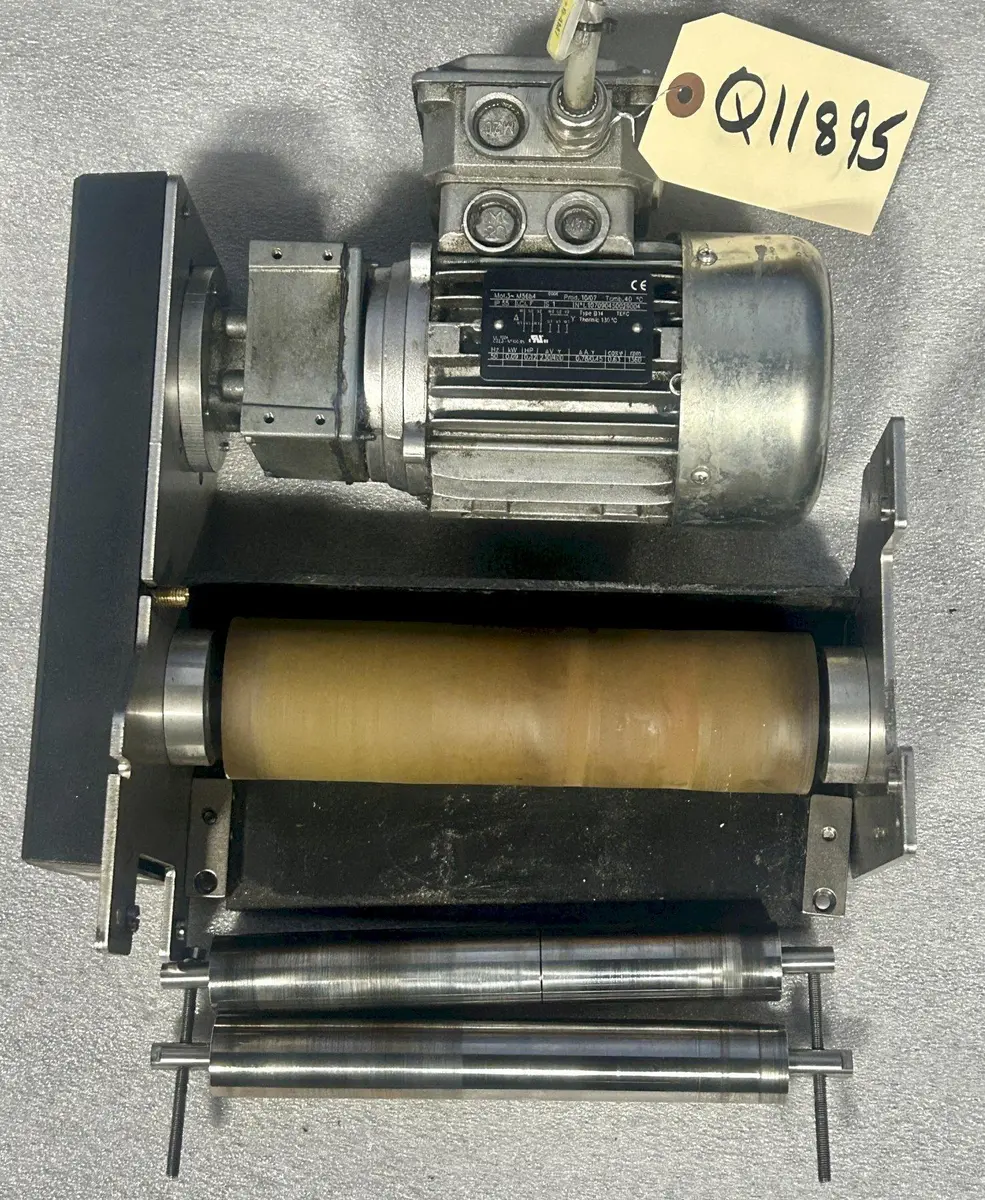

MONTECH TB-250 CONVEYOR DRIVE UNIT, Horizontal, Single Belt, Chassis Width 250 mm.
Mfr Part Number: TB-250
Type: Single-Belt
Belt Type: FNI-5E
Belt Width: 200 mm
Belt Length: 1,137 mm
Belt Speed: 4.1 m/min
Belt Tension: 0.38%
Belt Max Load: 310 N
AC Motor Type: Asynchronous
Motor Power: 45 W
Base Speed: 1,360 RPM
AC Frequency Rating: 60 Hz
Motor Phase: 3-Phase
Insulation Class: F (Max 155° C)
Ambient and Time Rating: 40° C AMB-CONT
Enclosure Rating: IP55
Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
Approximate Dimensions: 15" x 16"
Approximate Height: 9"
Approximate Weight: 21 LBS
CONDITION: This Drive Unit Appears to be in Very Good Condition. F.O.B. Cincinnati, OH
