2009 MONTECH TB-105 | Conveyors
$575.00 USD

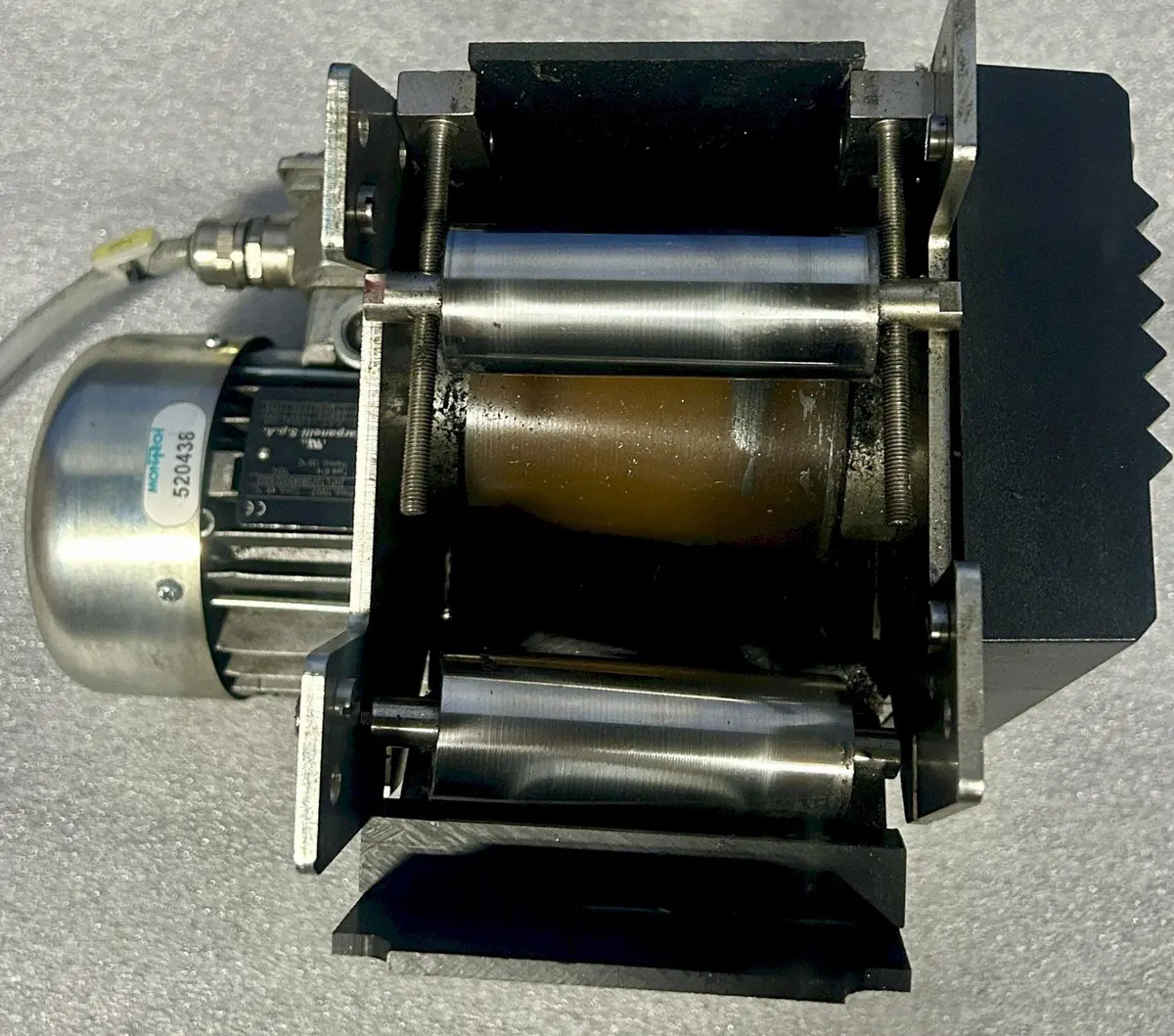

MONTECH TB-105 CONVEYOR DRIVE UNIT, Vertical, Single Belt, Chassis Width 105 mm.
Mfr Part Number: TB-105
Type: Single-Belt
Belt Type: FNI-5E
Belt Width: 80 mm
Belt Length: 2,627 mm
Belt Speed: 4.1 m/min
Belt Tension: 0.67%
Belt Max Load: 600 N
AC Motor Type: Asynchronous
Motor Power: 45 W
Base Speed: 1,360 RPM
AC Frequency Rating: 60 Hz
Motor Phase: 3-Phase
Insulation Class: F (Max 155° C)
Ambient and Time Rating: 40° C AMB-CONT
Enclosure Rating: IP55
Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
Approximate Dimensions: 15" x 16"
Approximate Height: 9"
Approximate Weight: 21 LBS
CONDITION: This Drive Unit Appears to be in Very Good Condition. F.O.B. Cincinnati, OH
