U.S. ELECTRICAL MOTORS E440/A02Z299R473F

U.S. ELECTRICAL MOTORS E440/A02Z299R473F | Gearboxes

Sell Your U.S. ELECTRICAL MOTORS E440/A02Z299R473F
513-771-2111
sales@gaec.com
$975.00 USD
Sell Your U.S. ELECTRICAL MOTORS E440/A02Z299R473F

Overview

Type:
Gearboxes
Manufacturer:
U.S. ELECTRICAL MOTORS
Model:
E440/A02Z299R473F
Stock #:
Q11920
Status:
For Sale

Description

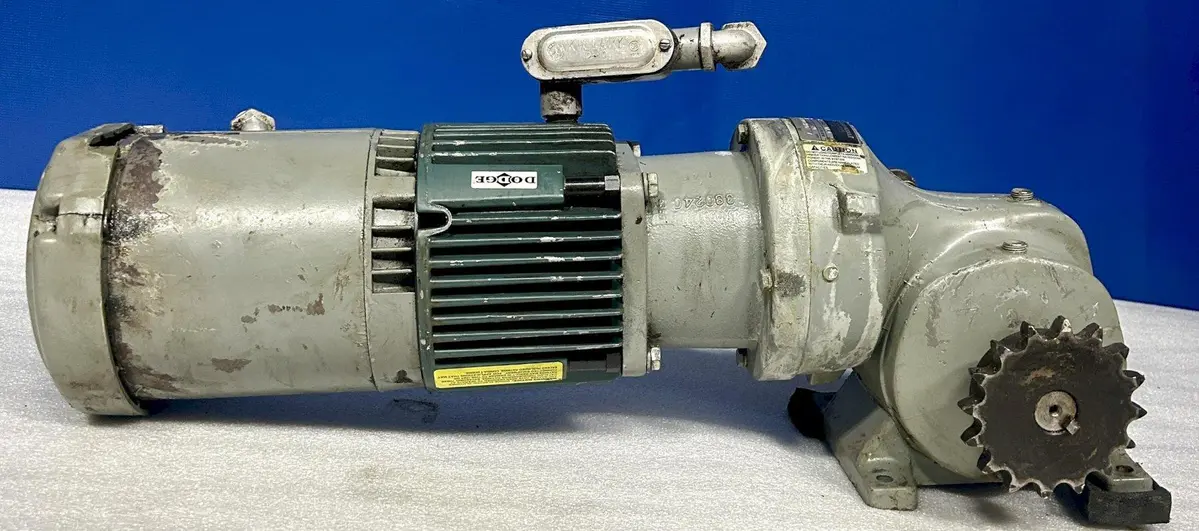

US MOTORS SYNCROGEAR MODULE, SyncroGear E440/A02Z299R473F with UNIMOUNT 125 Model F046A AC Motor, 0.5 HP, 206-230/460 VAC, 3-Phase, 1745 RPM, TEFC.

Gear Box ModelE440E440
Motor ModelF046AF046A
Gear Box Frame66
Gear TypeGWPGWP
Gear Ratio87.087.0
Gear Box Max Output Torque764764
Gear Box Max Input Power0.5 hp0.4 kW
Motor Frame56C56C
Service Factor1.21.2
Motor Power0.5 hp0.4 kW
Motor Speed1,745 RPM1,745 RPM
NEMA Design LetterBB
Insulation ClassF (Max 155° C / 311° F)F (Max 155° C / 311° F)
Motor Voltage0 V0 V
Motor Phase-3-3
Motor Frequency60 Hz60 Hz
NEMA Design LetterBB
Dimensions31" x 20"31" x 20"
Weight62 lbs62 lbs

Gear Box Model: E440
Motor Model: F046A
Gear Box Frame: 6
Gear Type: GWP
Gear Ratio: 87.0
Gear Box Max Output Torque: 764 in/lbs @ 20 RPM
Gear Box Max Input HP: .5 HP
Motor Frame: 56C
Service Factor: 1.25
Motor Horsepower: .5 HP
Motor Speed: 1,745 RPM
NEMA Design Letter: B (General Purpose)
Insulation Class: F (Max 155° C / 311° F)
Motor Voltage: 206-230/460V AC
Motor Phase: 3-Phase
Motor Frequency: 60 Hz
Approximate Dimensions: 31" x 20"
Approximate Height: 21"
Approximate Weight: 62 LBS

CONDITION: This Unit Appears to be in Good Condition. F.O.B. Cincinnati, OH
