Overview

Type:
Servo Motors
Manufacturer:
B&R
Model:
8MSA4M.E0-44
Stock #:
Q11919
Status:
For Sale

Description

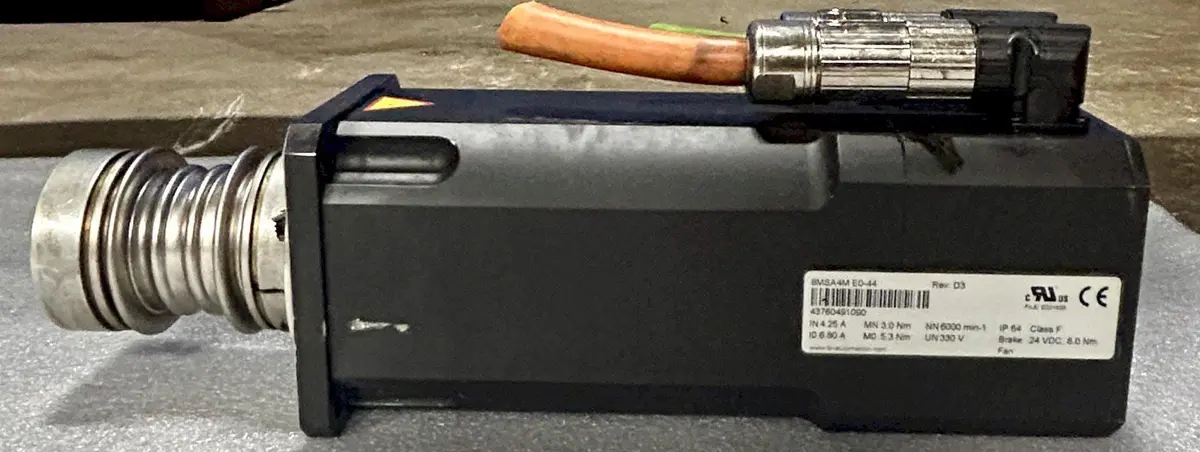

B&R SERVO MOTOR 8MSA4M.E0-44, 6000 RPM, Self-Cooling, Size 4, Medium Rated Torque, 3-Phase Synchronous.

Current TypeACAC
Torque (Stall)3.9 lbf17.4 N
Amp (Stall)6.8 A6.8 A
Voltage330330
Max Speed6,000 RPM6,000 RPM
Power Rating1.451.45
Motor Phase33
Power1.9 hp1.4 kW
Insulation ClassF (Max 155° C / 311° F)F (Max 155° C / 311° F)
Enclosure RatingIP 64IP 64
EncoderEnDat Single-Turn, 512 linesEnDat Single-Turn, 512 lines
Dimensions19" x 9"19" x 9"
Weight25 LBS25 LBS

Rated Power (P2): 1.45 kW
Torque (Stall): 5.3 Nm
Amp (Stall): 6.82 A
Voltage: 330 V
Rated Speed: 6,000 RPM
Motor Phase: 3-Phase
Insulation Class: F (Max 155° C / 311° F)
Enclosure Rating: IP 64
Encoder: EnDat Single-Turn, 512 lines
Approximate Dimensions: 19" x 9"
Approximate Height: 9"
Approximate Weight: 25 LBS

CONDITION: This Servo Motor Appears to be in Excellent Condition ! F.O.B. Cincinnati, OH
