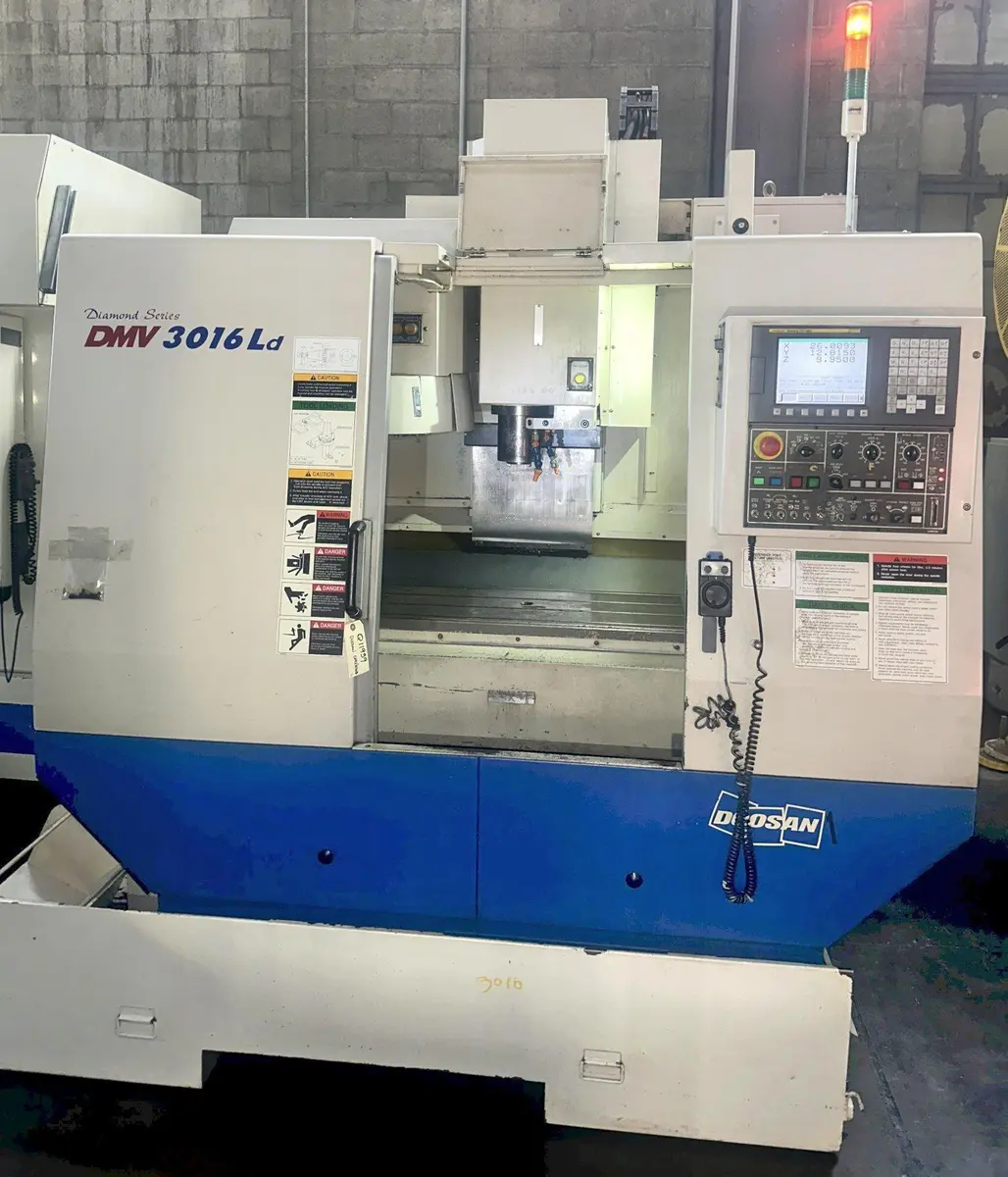

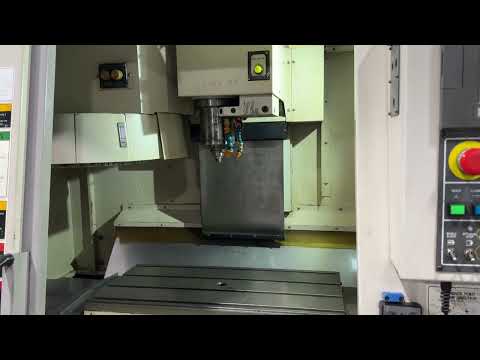

Daewoo Doosan DMV3016Ld CNC Vertical Machining Center

Daewoo Doosan DMV3016Ld CNC Vertical Machining Center

Sell Your DOOSAN DMV3016LD
513-771-2111
sales@gaec.com
Request Financing
Sell Your DOOSAN DMV3016LD

Overview

Type:
Machining Centers, Vertical
Manufacturer:
DOOSAN
Model:
DMV3016LD
Year:
2007
Stock #:
Q11939
Status:
For Sale
Serial #:
NM4100713

Description

Daewoo Doosan DMV3016Ld CNC Vertical Machining Center, Fanuc Oi-MC CNC Control, 40" x 18" Table, X=30", Y=16", Z=20", CAT 40 Taper, 15 HP, 8000 Max Spindle RPM, 20 ATC, Chip Pan & Coolant System, New 2007.

Fanuc Oi-MC CNC Control, 40" x 18" Table, 8000 RPM Spindle, Flood Coolant, Chip Pans & Coolant System.

CNC ControlFanuc Oi-MC CNCFanuc Oi-MC CNC
# Axis33
Table-L39.4"1,000.8 mm
Table-W17.7"449.58 mm
Max Table Load Capacity1,320 lb598.7 kg
X-Axis (Longitudinal Travel)30"762 mm
Y-Axis (Cross Travel)16"406.4 mm
Z-Axis (Vertical Travel)20"508 mm
Max Clearance Tabletop to Spindle Nose26"660.4 mm
Min Clearance Tabletop to Spindle Nose5.9"149.86 mm
Feed Rates (X, Y, & Z Axis).04 - 315 in/min.8 m/min.
X-Axis Rapid Traverse Rate1,181 in/min.30 m/min.
Y-Axis Rapid Traverse Rate1,181 in/min.30 m/min.
Z-Axis Rapid Traverse Rate945 in/min.24 m/min.
Spindle Power15 hp11.2 kW
Max Spindle Speed8,000 RPM8,000 RPM
Spindle TaperCAT 40CAT 40
Torque, Up To102 lbf453.7 N
Automatic Tool Changer Capacity (ATC)2020
Automatic Tool Changer StyleDirect Load CamlessDirect Load Camless
Electrics205-235/3/60205-235/3/60
Dimensions90" x 95" x 122"90" x 95" x 122"
Weight12,320 LBS12,320 LBS

CONDITION: This Machine Appears to be in Very Good Condition !

F.O.B. Cincinnati, OH
