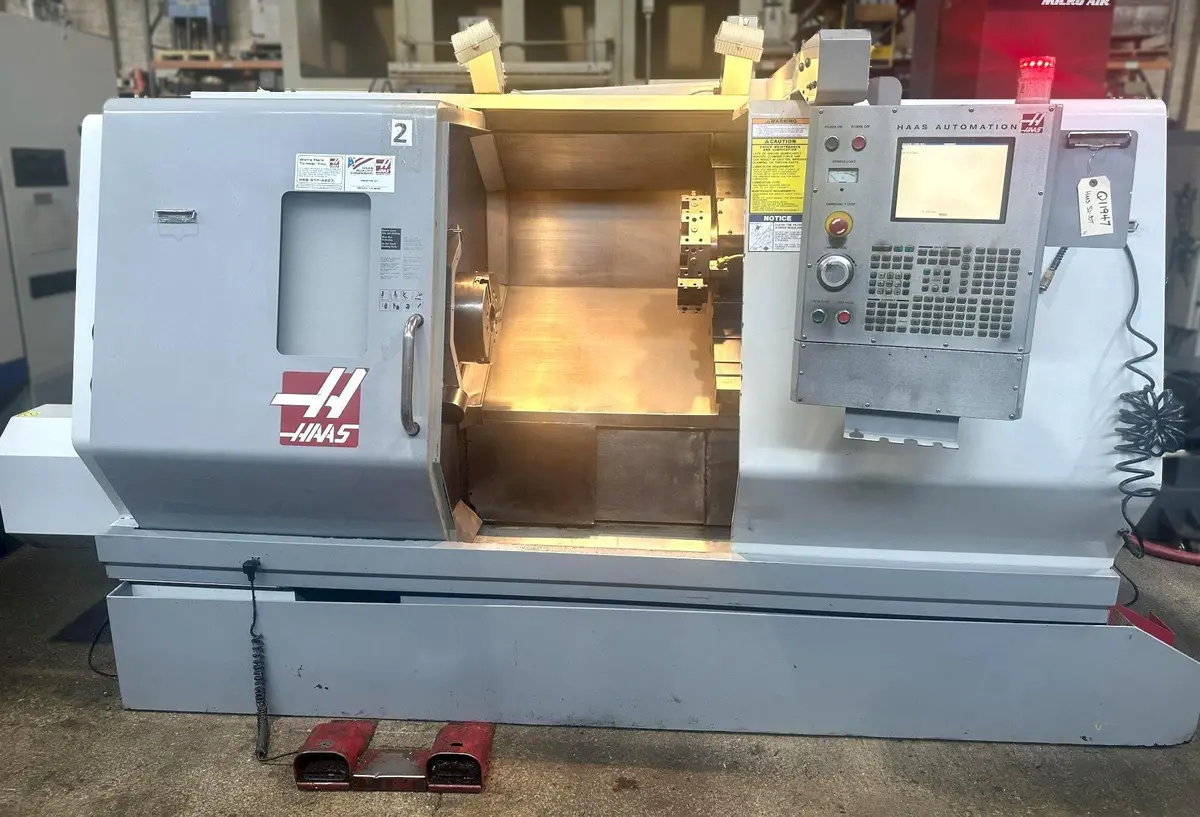

Haas CNC Control, 12" 3-Jaw Kitagawa Chuck, VOP-A, 2 Speed Gear Box, Tool Presetter, 3.5" Spindle Bore, 12 Station Tool Turret (1 Boring Bar Holder Included), Foot Pedal for Chuck Clamp/Unclamp, Tailstock, Coolant System, Chip Conveyor.
| CNC Control | Haas CNC | Haas CNC |
| # Axis | 2 | 2 |
| Max Swing Over Carriage | 14.5" | 368.3 mm |
| Max Machining Diameter | 39" | 990.6 mm |
| Chuck Size | 12" | 304.8 mm |
| Max Distance Between Centers | 39" | 990.6 mm |
| Max Turning Diameter | 17" | 431.8 mm |
| X-Axis (Cross Travel) | 14" | 355.6 mm |
| Z-Axis (Longitudinal Travel) | 34" | 863.6 mm |
| X-Axis Rapid Traverse Rate | 710 in/min. | 18 m/min. |
| Z-Axis Rapid Traverse Rate | 710 in/min. | 18 m/min. |
| Sub Spindle | No | No |
| # Tool Turrets | 1 | 1 |
| Tool Turret Positions | 12 Total | 12 Total |
| Live Tooling | No | No |
| Spindle Nose | A2-6 | A2-6 |
| Spindle Bore | 3.5" | 88.9 mm |
| Bar Capacity | 3" | 76.2 mm |
| Max Spindle Speed | 3,400 RPM | 3,400 RPM |
| Spindle Power | 30 hp | 22.4 kW |
| Tailstock | Yes | Yes |
| Electrics | 220/3/60 | 220/3/60 |
| Dimensions | 126" x 83" x 74" | 126" x 83" x 74" |
| Weight | 16,000 LBS | 16,000 LBS |
CONDITION: This Machine Appears to be in Very Good Condition !
F.O.B. Cincinnati, OH
This equipment has been sold. Similar equipment available now is shown below.
