Marvel 15A Horizontal Band Saw

Sell Your Armstrong-Blum Marvel 15A5/M8
513-771-2111
sales@gaec.com
Sell Your Armstrong-Blum Marvel 15A5/M8

Overview

Type:
Saws, Band, Horizontal
Manufacturer:
Armstrong-Blum Marvel
Model:
15A5/M8
Year:
1981
Stock #:
Q11957
Serial #:
E-151504

Description

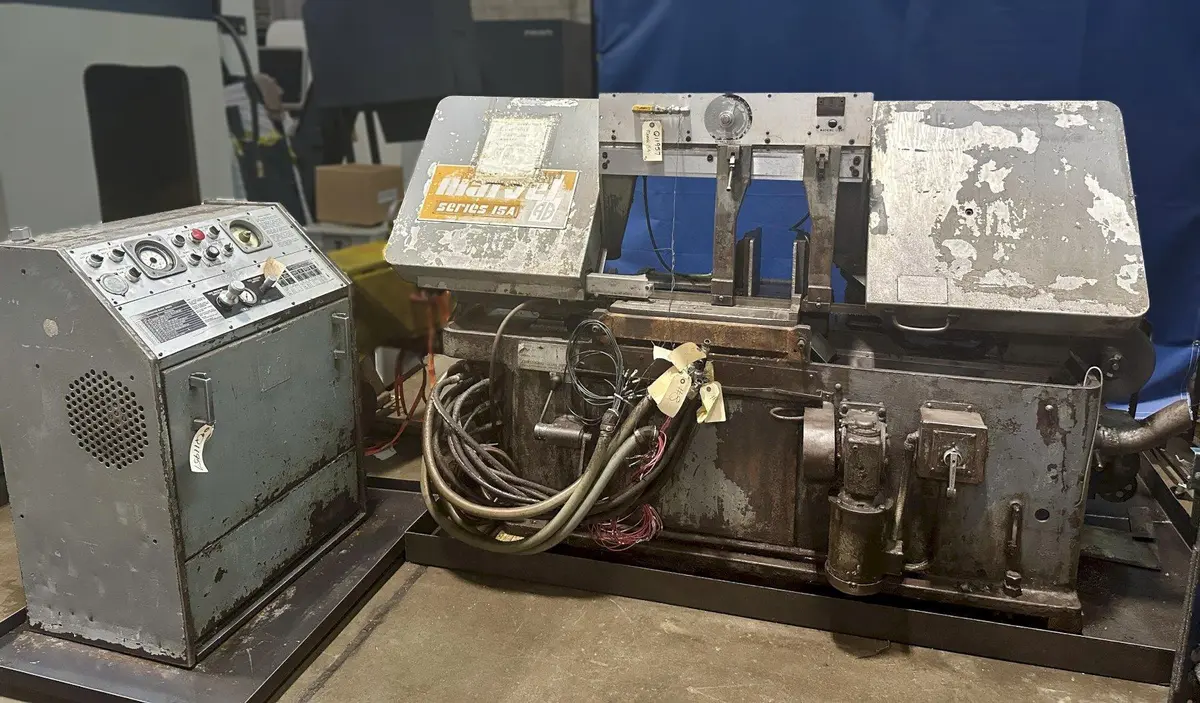

MARVEL 15A HORIZONTAL BANDSAW, Automatic Stock Infeed (2) Vises, 15" x 20" Capacity, 5 HP Drive Motor, 55-400 FPM, Coolant System, New 1981.

Automatic Stock Infeed w/Programmable Lengths, 10' Automatic Conveyor Feed, 40" 'Heavy Duty' Discharge Table, (2) Automatic Hydraulic Vises, Micrometer Dial Setting, Quick Adj. Blade Guide Arms, Carbide Faced Blade Guides, Work Height Selector, Hydraulic Down Feed Compensator Controls, Coolant System, Automatic Chip Auger.

Nominal Capacity (H)15"381 mm
Nominal Capacity (W)20"508 mm
Type (Auto, Manual, Semi)AutoAuto
Blade Speeds55 - 400 FPM55 - 400 FPM
Blade Length15'6"/186"4,724.4 mm
Max Blade Width1.25"31.75 mm
Blade Thickness0.035"0.889 mm
ViseHydraulic VisesHydraulic Vises
Blade GuidesCarbide Faced Blade GuidesCarbide Faced Blade Guides
Blade Drive Power5 hp3.7 kW
Electrics220/440/3/60220/440/3/60
Dimensions132" x 82" x 74"132" x 82" x 74"
Weight7,500 LBS7,500 LBS

Hydraulic Feed, Compensation, Infinitely Variable: 0 - 200 LBS
Shuttle Type Automatic Bar Feed Length: 120"
Feed Stroke Multi-Cycle (per Cycle): 0 - 24"
Max Bar Feed Load Capacity: 7,000 LBS
Hydraulic Pump Horsepower: 2 HP

CONDITION: This Machine Appears to be in Good Condition.

F.O.B. Cincinnati, OH
