15" x 54" Leblond Makino Regal Servo-Shift Engine Lathe

15" x 54" Leblond Makino Regal Servo-Shift Engine Lathe

Sell Your Leblond Makino 14C
513-771-2111
sales@gaec.com
Sell Your Leblond Makino 14C

Overview

Type:
Lathes, Engine
Manufacturer:
Leblond Makino
Model:
14C
Year:
1984
Stock #:
Q11994
Serial #:
14C 1007

Description

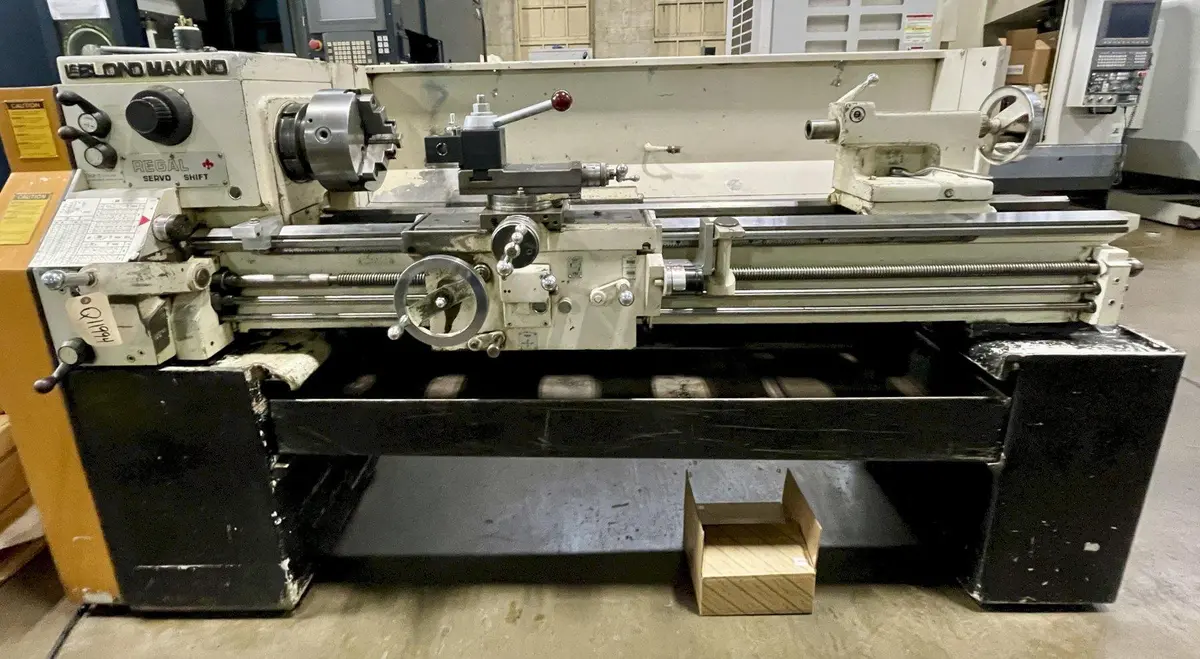

15" x 54" LEBLOND MAKINO REGAL SERVO-SHIFT ENGINE LATHE, Model 14C, 10" 3-Jaw Chuck, CXA Wedge-Type Tool Post, 16" Swing, 2.25" Thru Hole, Tailstock w/ 54" Between Centers, Inch/Metric Threading, New 1984.

Hard and Ground Steel Bed Ways, Inch/Metric Threading, Thread Chasing Dial, 10" 3-Jaw Cushman Chuck, Brand New CXA wedge Type Tool Post with (5) Holders, Tailstock, Chip Pan.

Max Swing Over Bed15.5"393.7 mm
Max Swing Over Cross Slide9.5"241.3 mm
Distance Between Centers54"1,371.6 mm
Bed Width12.188"309.56 mm
Cross Slide Travel7.875"200.02 mm
Chuck Size10" 3 Jaw254 mm
Spindle NoseL-1L-1
Spindle Through Hole2.25"57.15 mm
# of Spindle Speeds1414
Spindle Speeds Range45 to 1,800 RPM0 RPM
# of Threads - Inch4848
Inch Threads2 to 112 TPI2 to 112 TPI
# of Feeds4848
Longitudinal Feeds Range.0018" to .104 IPR2.6 mm/rev
Tailstock Spindle Travel5"127 mm
Taper of Tailstock Center#4 MT#4 MT
Tailstock Spindle Diameter1.9375"49.213 mm
Main Motor Power7.5 hp5.6 kW
Electrics230/3/60230/3/60
Dimensions44" x 110" x 54"44" x 110" x 54"
Weight3,260 lbs3,260 lbs

CONDITION: This Machine Appears to be in Excellent Condition !

F.O.B. Cincinnati, OH
