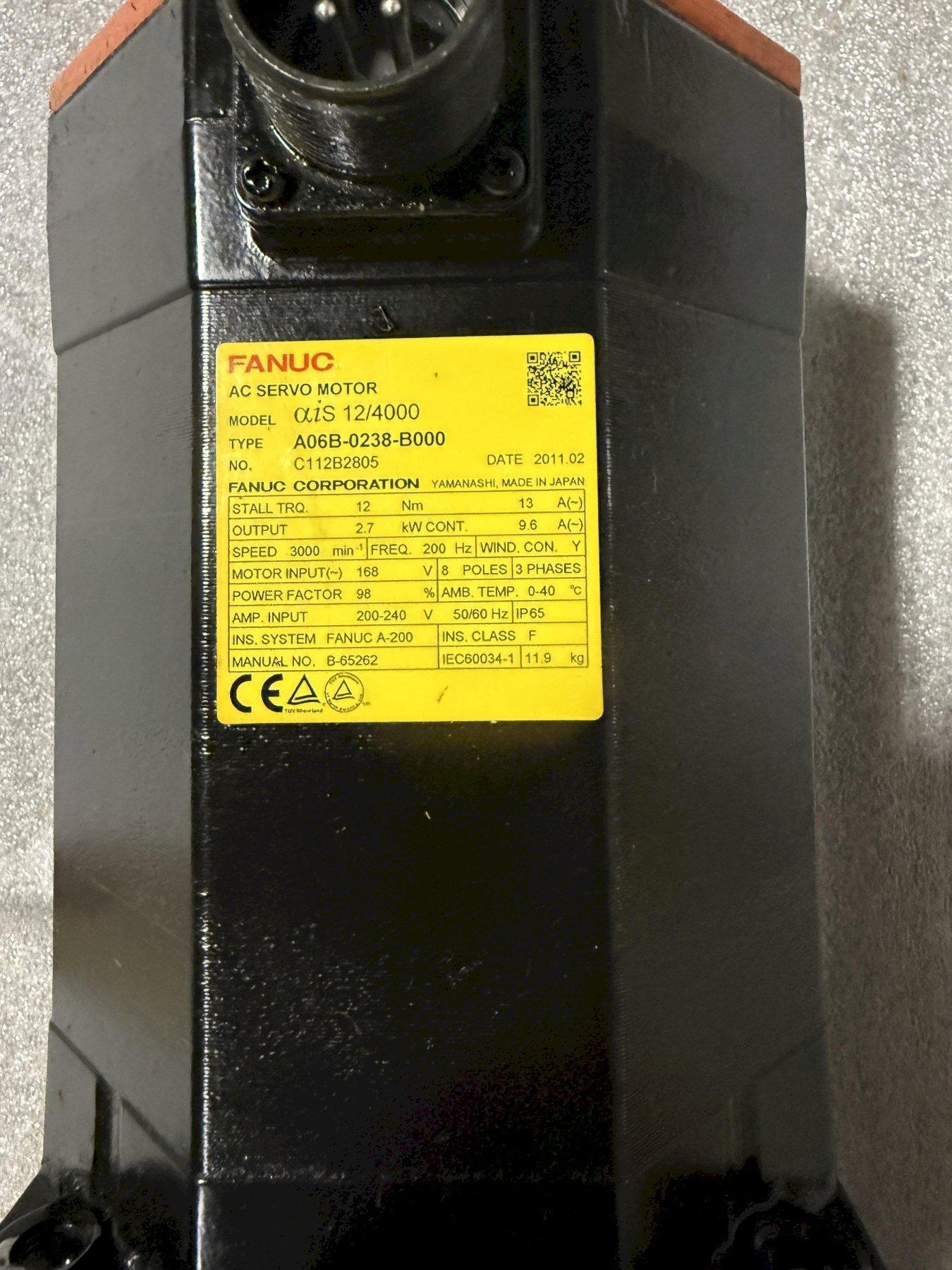

Stock #: Q12080
Brand: FANUC
Model: A06B-0238-B000
Type: Servo Motors
Condition: Very Good
Year: Not Specified

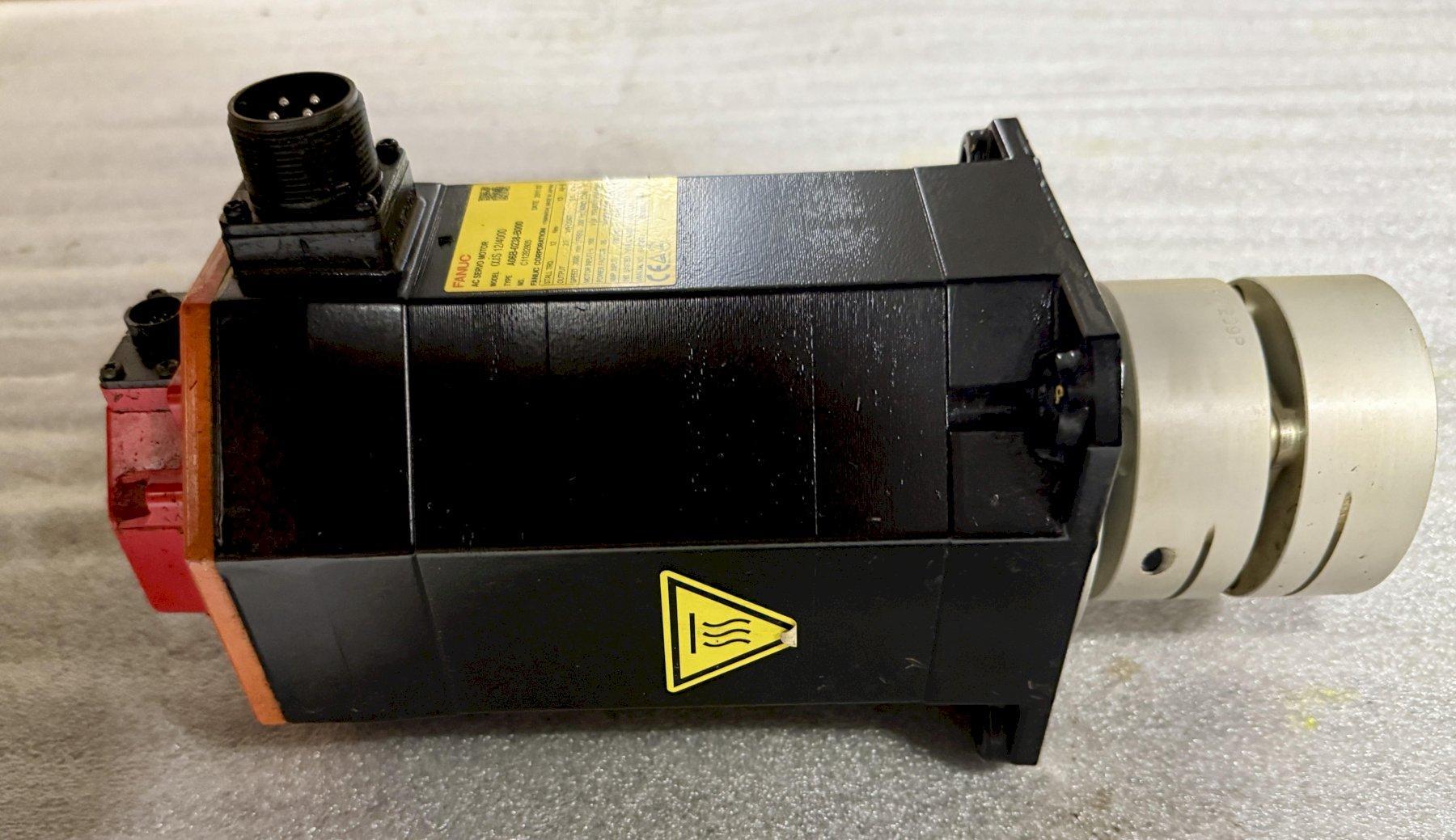

Tapered Shaft

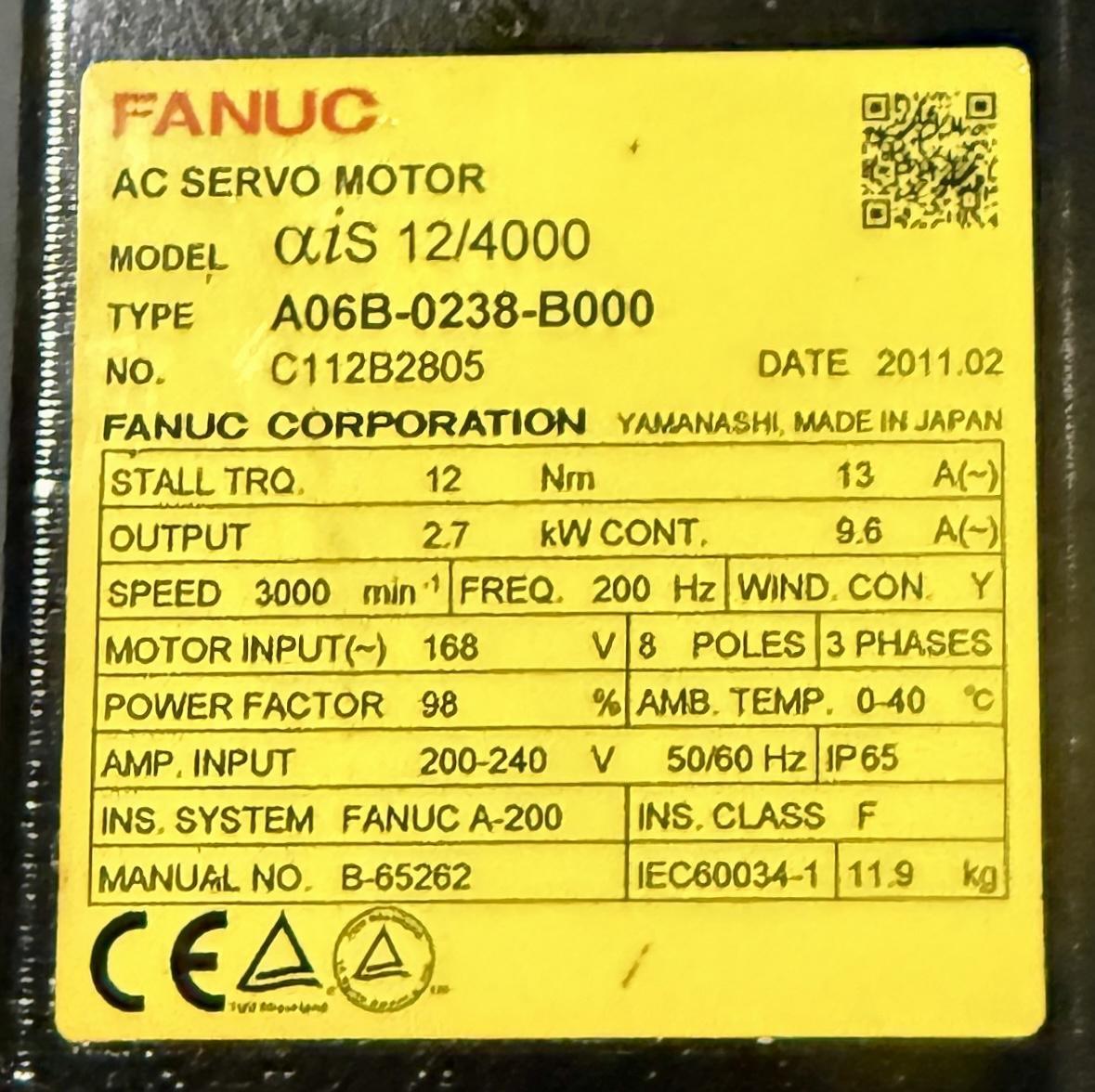

Specifications: |
|
---|---|
Current Type | AC |
Torque (Stall) | 12 Nm |
Amp (Stall) | 13 A |
Voltage | 168 V |
# Poles | 8 |
Max Speed | 3,000 RPM |
Ambient | 40° C |
Power Factor | 98% |
Frequency | 200 Hz |
Motor Phase | 3 |
Insulation Class | F (Max 155° C / 311° F) |
Enclosure Rating | IP 65 |

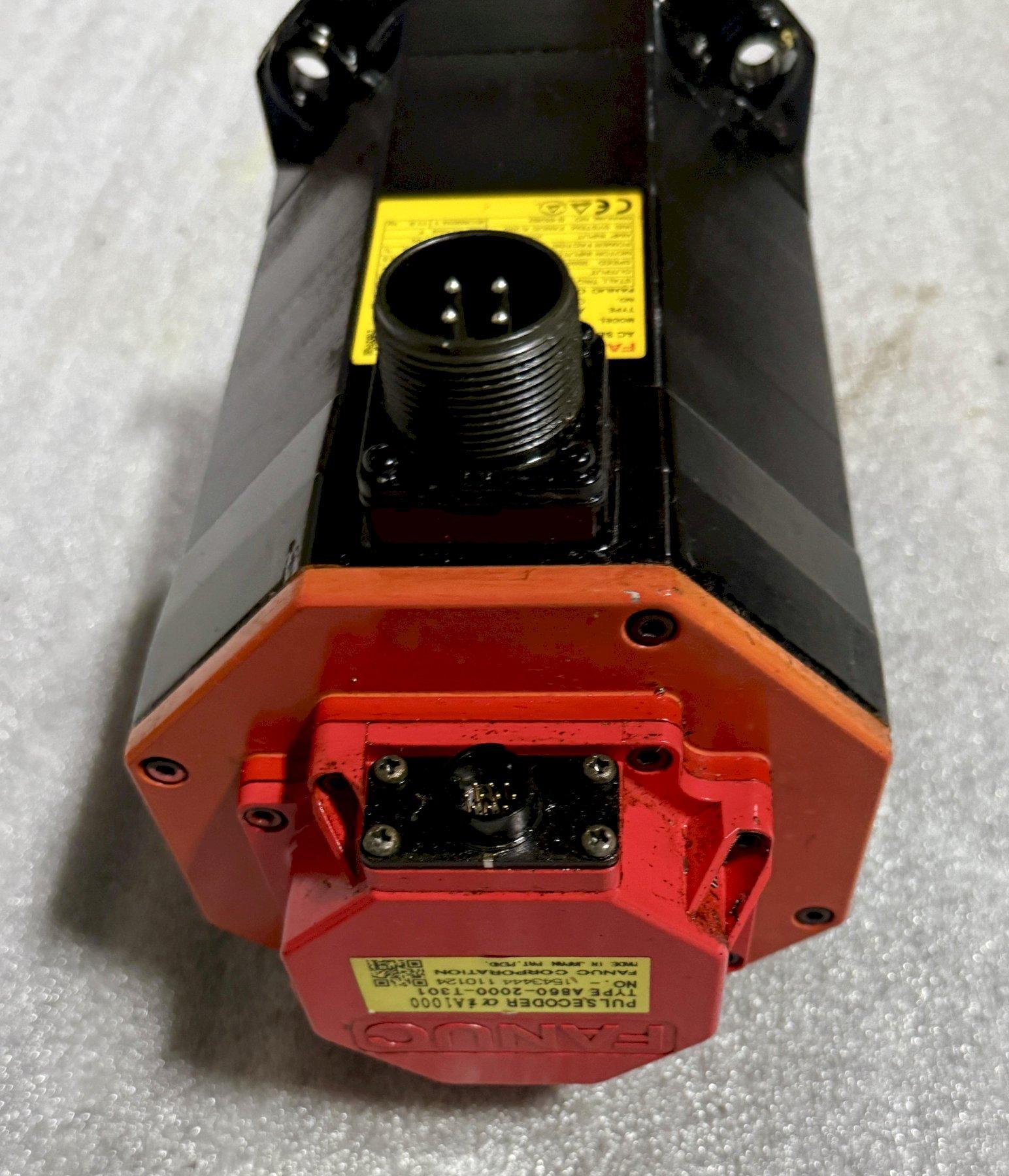

Encoder | PulseCoder AiA1000 Type A860-2000-T301 |
Manual No | B-65262 |
Standards | IEC60034-1 |
Approximate Dimensions | 16" x 12" x 11" |
Approximate Weight | 32 LBS |
CONDITION: This Motor Appears to be in Very Good Condition !
Fields marked with * are required.
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
Fields marked with * are required.
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
Equipped With |
---|
Tapered Shaft |
Specifications |
|
---|---|
Current Type | AC |
Torque (Stall) | 12 Nm |
Amp (Stall) | 13 A |
Voltage | 168 V |
# Poles | 8 |
Max Speed | 3,000 RPM |
Ambient | 40° C |
Power Factor | 98% |
Frequency | 200 Hz |
Motor Phase | 3 |
Insulation Class | F (Max 155° C / 311° F) |
Enclosure Rating | IP 65 |
Encoder | PulseCoder AiA1000 Type A860-2000-T301 |
Manual No | B-65262 |
Standards | IEC60034-1 |
Approximate Dimensions | 16" x 12" x 11" |
Approximate Weight | 32 LBS |
CONDITION: This Motor Appears to be in Very Good Condition ! |
