Stock #: K14729
Brand: Cincinnati
Model: SERIES 30 CIM-X
Type: Machining Centers, Horizontal
Condition: Very Good
Year: Not Specified

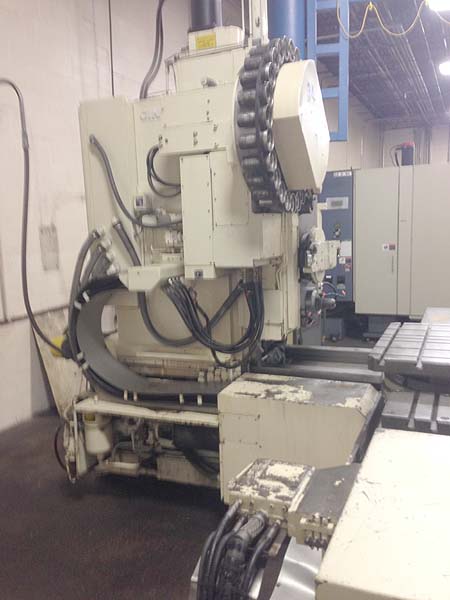

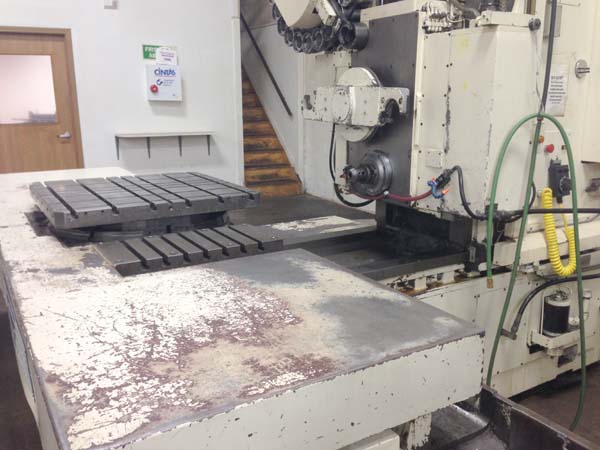

Fanuc GN 6 CNC Control, 24 Station Tool Changer, 32" x 32" Rotary Table, Coolant Tank and Pump.
SPECIFICATIONS:
Table Size........................................ 60" x 24"
Longitudinal X Travel............................. 50"
Vertical Y Travel................................. 30"
Cross Z Travel.................................... 28"
Rotary Index Positions............................ 72
Maximum Rotary Table Load......................... 5000 LBS
Spindle to Table Top.............................. 0" to 30"
Spindle to Table Centerline....................... 6" to 34"
Spindle Drive..................................... 10 HP
Spindle Speed Range (21 Settings)................. 29-3000 RPM
Spindle Taper..................................... #45 CMI Taper
Feeds (Increments of .1).......................... .5 to 200 IPM
Rapid Traverse (X-Y-Z)............................ 200 IPM
Electrics (Dual Voltage).......................... 440/3/60
Floor Space....................................... 17'L-Rx13'F-Bx10'6"H
Approximate Weight................................ 30,000 LBS
Condition: Under-Power for Demo. Appears to be in very good condition !
