Stock #: K14713
Brand: TOOLMEX
Model: TUR630A
Type: Lathes, Engine
Condition: Excellent
Year: 1996

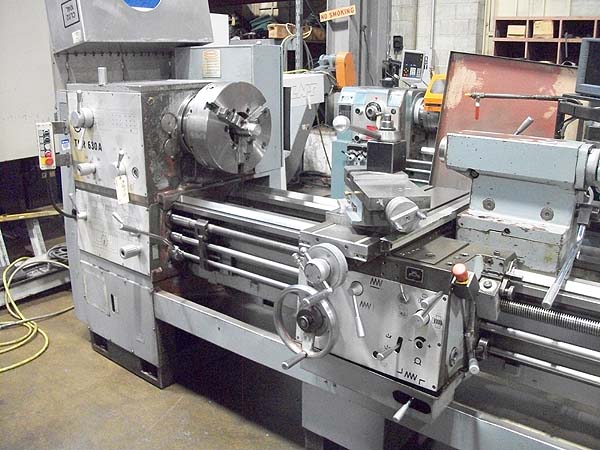

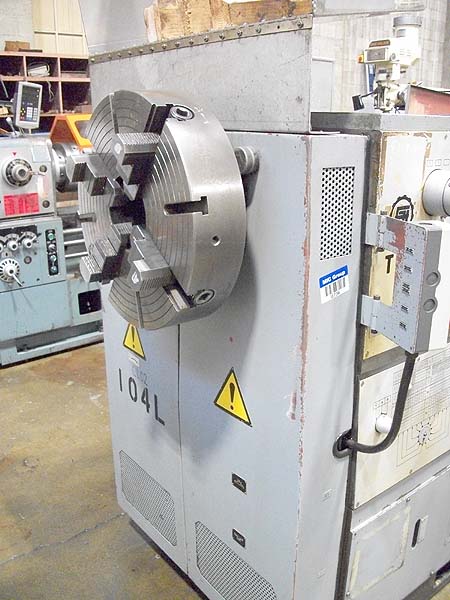

Newall DP7 2-Axis Digital Readouts, 5.5" Spindle Bore, Front and Rear Chucks, Steady Rest, (2) 15" 3-Jaw Chucks, Rapid Traverse, Inch Metric Threading, Taper Attachment, Auxillary Angle Compound Cross Slide, Aloris Tool Post, Coolant System, Chip Pans.
SPECIFICATIONS:
Swing over the bed................................. 24.8
Swing over the cross slide......................... 14.9"
Distance between centers........................... 120"
Cross Slide Travel................................. 13"
Spindle Nose....................................... D1-11
Spindle Bore....................................... 5.5"
Taper in Tailstock................................. MT-5
Spindle Speed (21)................................. 15-1400 RPM
Feed Range......................................... .002-.121 IPR
Metric Threads (42)................................ 1-88 mm
Inch Threads (42)................................ 1-88 TPI
Main Motor......................................... 20 HP
Approximate Machine Dimensions..................... 200" x 71"
Approximate Machine Weight......................... 12,500 lbs
CONDITION: Appears to be in Excellent Condition !
