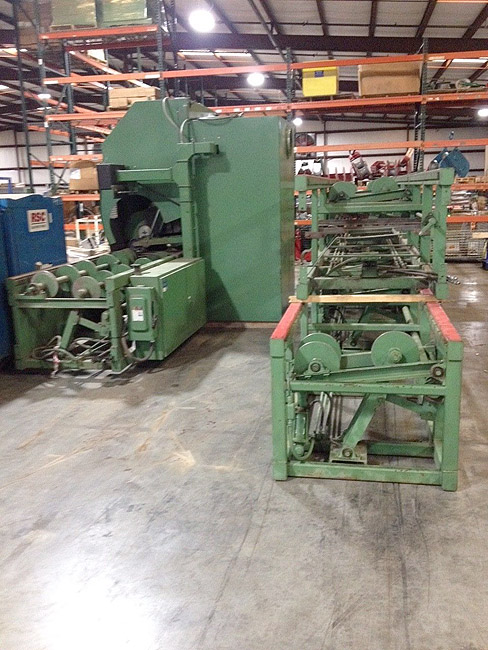

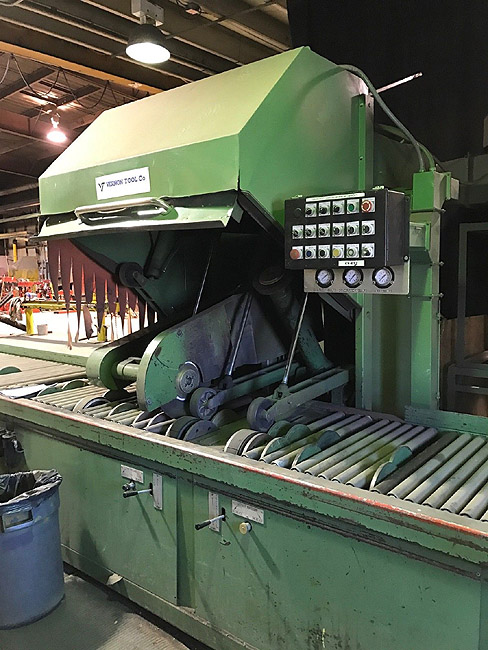

24" VERNON TOOL COMPANY ABRASIVE PIPE SAW

Stock #: K15141

Brand: VERNON TOOL

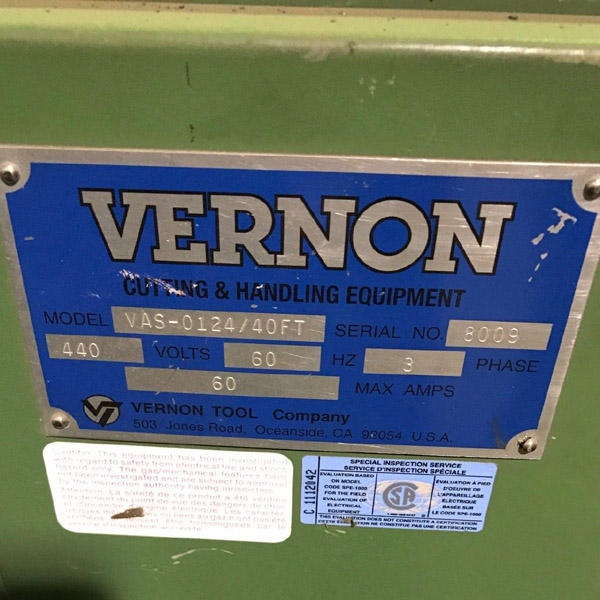

Model: VAS-0124
Type: Saws, Abrasive & Friction
Condition: Good
Year: Not Specified

Equipped With:


15 HP Abrasive Wheel, Hydraulic Operated Pipe Rollers, (3) Pneumatic  Pipe Hold Downs, Auxiliary Bevel Grinding Spindle, 40' Length Capacity, Cuts Pipe up to 24" Diameter.

NOTE: Abrasive wheels can cut, bevel, and groove materials including carbon steel, black iron, ductile, alloy, stainless steel, ceramic, cement-lined, glass-lined and plastic pipe. Straight cuts and bevels with or without a land on diameters from 1" to 24" O.D.

SPECIFICATIONS:
Pipe Diameter........................ 1"- 24" (25-610 mm)
O.D. Structural Shapes............... Up to 6" (150 mm)
Bed Length (Std./Opt.)............... 60'
Min.-Max. Cut Length (Std./Opt.)..... 1/2"- 40'
Min. Length w/ Beveled Ends.......... 1/2"
Weight per Foot...................... 150 lbs/ft (220 kg/m) to a
                                      maximum load of 3000 lbs (1350 kg)
Cutting Method....................... Abrasive Wheel
Max. Rotation Speed.................. 360 surface inches per minute
Average Material Removal............. 0.0328 cubic inches per second
Motors: Cutter....................... 15 HP A.C.
Motor Pipe Rotation Drive............ 1 HP D.C.
Motor Hydraulic Power Unit........... 5 HP
Motor Dust Collection................ 7-1/2 HP A.C.
Electrical........................... 460 VAC, 3-Phase, 60 Hertz
