Sold

2000 HAAS VF-5/50

Machining Centers, Vertical
Manufacturer:
HAAS
Model:
VF-5/50
Year:
2000
Stock #:
K15234
Serial #:
21190

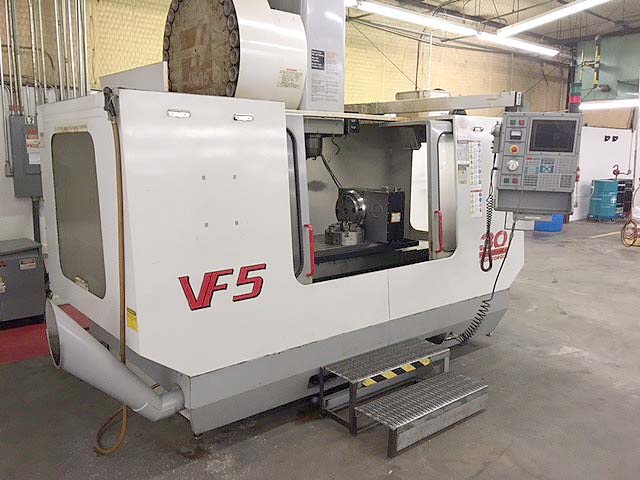

HAAS VF-5/50 CNC VERTICAL MACHINING CENTER, Haas CNC, 52" x 23" Table, X=50",Y=26",Z=25",50 Taper, 7500rpm,Probes, New 2000.

Haas 32-Bit CNC Control w/CRT, 4th Axis Pre Wire (No Table), User Definable Macros, Remote Jog Handle, Rotation and Scaling, Rigid Tap, Floppy Disk, Heavy Duty 30 HP Cat-50 Geared Spindle with 2 Range Gear Box, 30 Station Side Mount Automatic Tool Changer, Tool Setting Probe, Programmable Coolant Nozzle, Renishaw Spindle Probe, Metal Way Covers, Work Light, Chip Auger, Coolant and Chip Auger.

SPECIFICATIONS:

CNC Control……………. Haas 32-Bit CNC

# Axis……………… 3

Table-L............................... 52"

Table-W............................... 23"

Max Table Load Capacity................................. 4,000 LBS

Longitudinal Travel (X-Axis)........................ 50"

Cross Travel (Y-Axis)............................... 26"

Vertical Travel (Z-Axis)............................ 25"

Max Clearance Tabletop to Spindle Nose......... 34"

Feed Rates, All Axes................................ 0 to 500 in/min.

Rapid Traverse Rate, X-Axis......................... 710 IPM

Rapid Traverse Rate, Y and Z Axes................... 600 IPM

Tool Storage Capacity............................... 30

Spindle Power.................................. 30 HP

Spindle Speeds Range................................ 0 – 7,500 RPM

Spindle Taper....................................... No. 50 CAT

Approximate Machine Dimensions................... 114" x 156"x 118.5"

Approximate Machine Weight.......................... 14,600 LBS
