LEADWELL FMC-560 2-PALLET VERTICAL MACHINING CENTER

Stock #: K13782

Brand: LEADWELL
Model: FMC-560
Type: Machining Centers, Vertical
Condition: Excellent
Year: 2004

Equipped With:

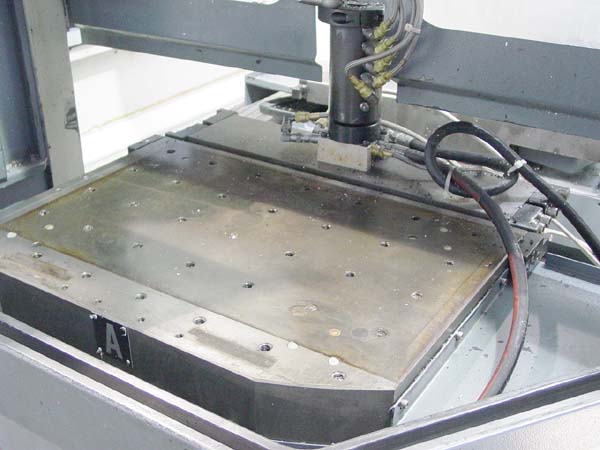

Fanuc 18i CNC Control, Manual Pulse Generator, Background Edit, Canned Cycles, Inch Metric Programming, Tool Life Management, Tool Offsets, Automatic Work Changer with (2) 22" x 16.1" Work Zones, Rigid Tapping, 20 Station Automatic Tool Changer, Full Coolant Enclosure, Conveyor, and Coolant System.

SPECIFICATIONS:

CNC Control……………. Fanuc 18i CNC<br>
# Axis……………… 3<br>
# Working Areas……………….. 2<br>
Working Area-L..................................... 22" <br>
Working Area-W..................................... 16.1"<br>
Table Load Capacity on Rotating Pallet................ 880 LBS <br>
Min Clearance Tabletop to Spindle Nose..................... 1.9"<br>
Max Clearance Tabletop to Spindle Nose..................... 18.89"<br>
Longitudinal Travel (X-Axis).......................... 22"<br>
Cross Travel (Y-Axis)................................. 16.5"<br>
Vertical Travel (Z-Axis).............................. 17.7"<br>
Rapid Traverse Rate X,Y, & Z Axes..................... 1889 IPM<br>
Tool Storage Capacity................................. 24<br>
Spindle Power.................................... 15 HP<br>
Spindle Speed Range................................... 50 - 1,200 RPM<br>
Spindle Taper......................................... CAT 40<br>
Approximate Machine Dimensions........................ 89" x 118" x 98"<br>
Approximate Machine Weight............................ 8,500 LBS


CONDITION: This Machine Appears to be in Excellent Condition !
