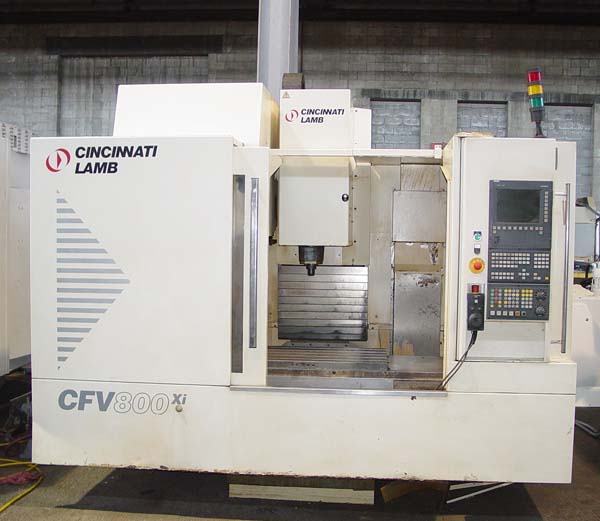

CINCINNATI CFV-800 CNC VERTICAL MACHINING CENTER

Stock #: K13767

Brand: Cincinnati
Model: CFV-800
Type: Machining Centers, Vertical
Condition: Very Good
Year: 2004

Equipped With:

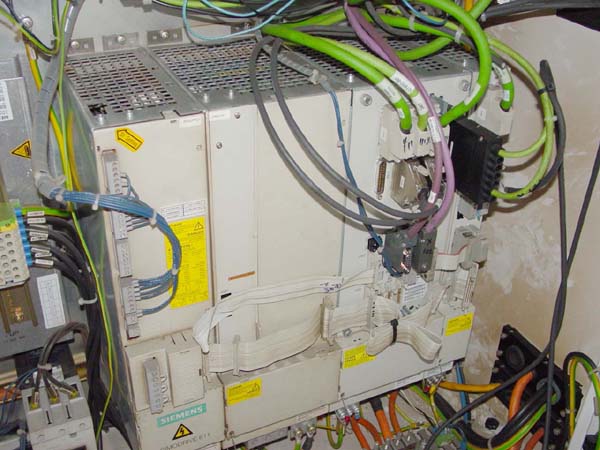

Siemens 810D CNC Control, Hand Held Pendent, Rigid Tapping, 25 Station Automatic Double Arm Tool Changer, Thru Spindle Coolant, Full Coolant Enclosure, Keyboard, Spindle Load Meter, Chip and Coolant System.

Specifications:

CNC Control yes
Type of CNC Control Siemens 810D CNC Control
# Axis 3
Table Working Surface 33" x 20.5"
Table Load Capacity 880 LBS
X-Axis (Longitudinal Travel) 31.5"
Y-Axis (Cross Travel) 20"
Z-Axis (Vertical Travel) 20"
Rapid Traverse Rate, All Axes 1180 IPM
Spindle Horsepower 15 HP
Spindle Speed Range 60 - 12,000 RPM
Spindle Taper #40 CAT
Coolant Thru Spindle yes
Automatic Tool Changer Capacity (ATC) 25
Automatic Tool Changer Style Double Arm Type
Approximate Machine Dimensions 89" x 137"
Approximate Machine Height 106"
Approximate Machine Weight 11,820 LBS
CONDITION: This Machine Appears to be in Very Good Condition !
