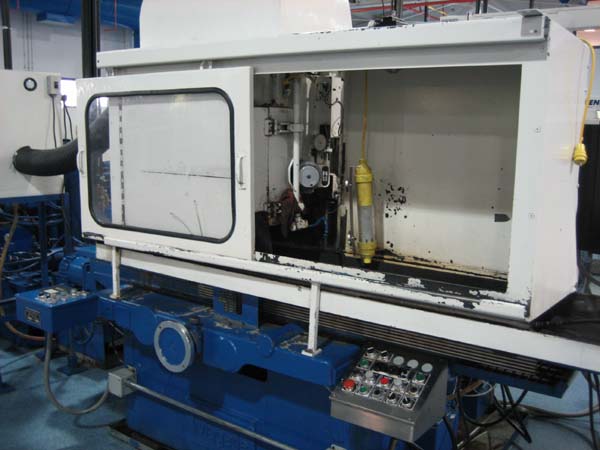

Servo Table Infeed with Controller, Rough and Finish Grinding Cycles, Spindle Load Monitor, Up-Graded ABB Spindle Drive Unit, Diamond Roll Crush Dresser, Newall Linera Feedback Scales, Coolant System.
SPECIFICATIONS:
Working Surface..................,,..... 9.45" x 41.33" (240mm x 1050mm)
Longitudinal Table Travel .............. 44.48" ( 1130mm)
Maximum Grinding Width ................. 12.59" ( 320mm)
Cross Travel of Table................... 10.62" ( 270mm)
Vertical Travel of Wheel................ 18.50" ( 470mm)
Max Height Under a New Wheel............ 23.62" ( 600mm)
Grinding Wheel Standard Diameter........ 11.81" ( 300mm)
Grinding Wheel Max Diameter............. 15,74" ( 400mm)
Grinding Wheel Width, Standard.......... 3.93" ( 100mm)
Grinding Wheel Bore..................... 5" ( 137mm)
Grinding Wheel Motor.................... 40 HP ( 30.8 KW)
Electrics (Dual Voltage)................ 240/3/60
Approximate Machine Dimensions.......... 137.5" x 95"
Approximate Machine Height.............. 89"
Approximate Machine Weight.............. 12,525 LBS ( 5700 kg)
Table-L | 41.33" | 1,049.8 mm |
Table-W | 9.45" | 240.03 mm |
X-Axis (Longitudinal Travel) | 44.48" | 1,129.8 mm |
Max Grinding Width | 12.59" | 319.79 mm |
Z-Axis (Cross Travel) | 10.62" | 269.75 mm |
Y-Axis (Vertical Travel) | 18.5" | 469.9 mm |
Max Height Under a New Wheel | 23.62" | 599.95 mm |
Grinding Wheel Diameter, Standard | 11.81" | 299.97 mm |
Max Grinding Wheel Diameter | 15.74" | 399.8 mm |
Grinding Wheel Width, Standard | 3.93" | 99.822 mm |
Grinding Wheel Hole Diameter | 5" | 127 mm |
Grinding Wheel Power | 40 hp | 29.8 kW |
Electrics (Dual Voltage) | 240/3/60 | 240/3/60 |
Dimensions | 137.5" x 95" x 89" | 137.5" x 95" x 89" |
Weight | 12,525 LBS | 12,525 LBS |
