Sold

1993 TOSHULIN SKQ-12NC

Boring Mills, Vertical
Manufacturer:
TOSHULIN
Model:
SKQ-12NC
Year:
1993
Stock #:
K14396
Serial #:
2212019

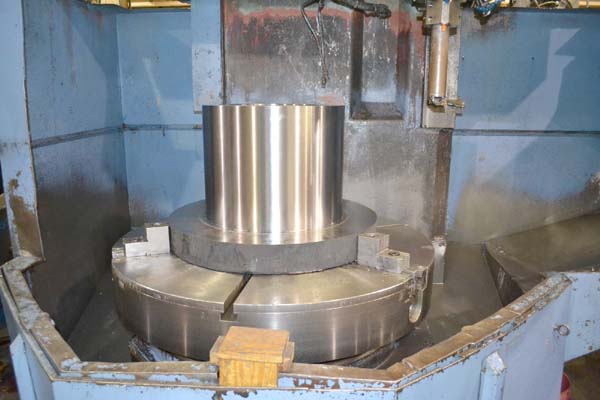

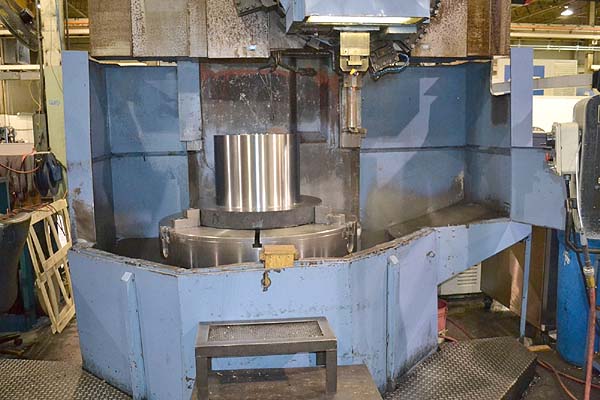

49" TOS HULIN CNC VERTICAL BORING MILL, Model SKQ-12NC, Fanuc 0TC CNC Control, 49" Chuck, 59" Swing, 44" Under the Rail, 12 ATC, 50HP, 250 RPM, New 1993.

Fanuc 0T-C CNC Control, Hand Held Pendant MPG Control, 49" 3-Jaw Chuck, Ram w/ 12 Station Automatic Tool Changer, Coolant System, Chip Conveyor, Splash Guards.

CNC Control: Fanuc 0T-C CNC Control
Table Size: 49" diameter
Max Swing: 59"
Max Height Under Rail: 44"
Z-Axis (Vertical Ram Head Travel): 39"
X-Axis (Horizontal Ram Head Travel): 35"
Y-Axis (Vertical Travel of Cross Rail): 15"
Automatic Tool Changer Capacity (ATC): 12
Table Load Capacity: 11,000 LBS
Table Horsepower: 50 HP
Table Speeds: 10 - 250 RPM
Approximate Machine Dimensions: 190" x 192"
Approximate Machine Height: 174"
Approximate Machine Weight: 46,000 LBS

CONDITION: Machine Appears to be in Excellent Condition !

F.O.B. Cincinnati, OH
