Stock #: K14477
Brand: SPEEDFAM
Model: 24BTAW
Type: Lappers
Condition: Excellent
Year: 1993

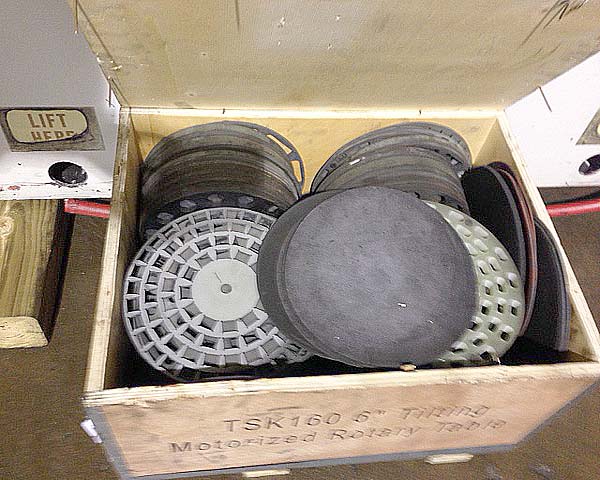

(4) Pneumatic Pressure Holding Arms, (4) 9" Diameter Retaining Rings, Pneumatic Pressure Plate, Geared Conditioning Rings, Automatic Timer, Water Cooled Table, Coolant Pump and Tank, Large Assortment of Tooling Plates
SPECIFICATIONS:
Plate Diameter, O.D. ................................. 24" O.D.
Single Part Diameter, Maximum ........................ 24"
Retaining Rings, Number of ........................... 4
Retaining Rings, Inside Diameter ..................... 9" I.D.
Segment Thickness..................................... 1"
HoldDown Cylinder Stroke.............................. 9"
Plate Speed .......................................... 87 RPM
Plate Motor, Horsepower .............................. 3 HP
Electrics ............................................ 220/460/3/60
Approximate Machine Dimensions ....................... 48" x 66"
Approximate Machine Height ........................... 5'6"
CONDITION: Machine Appears to be in Excellent Condition !
