1976 HEALD 273A

Grinders, Internal
Manufacturer:
HEALD
Model:
273A
Year:
1976
Stock #:
K14225
Serial #:
47131

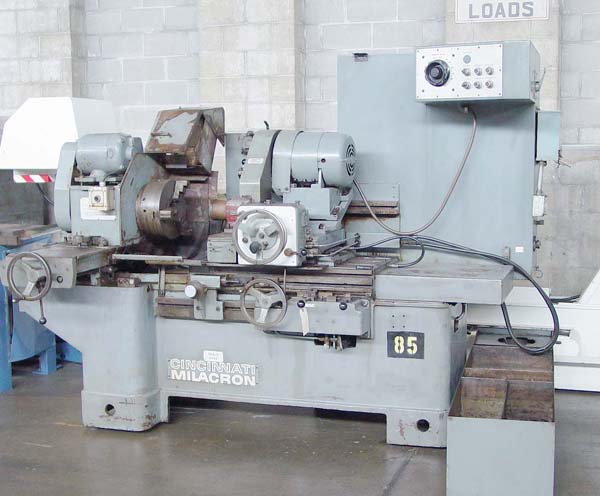

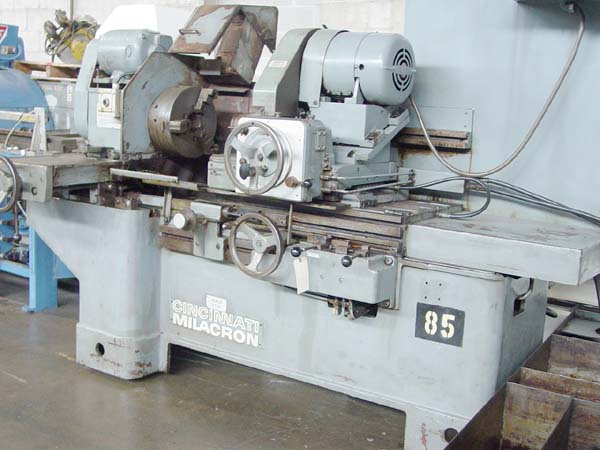

273A HEALD UNIVERSAL, Extended Base, 24" Swing over Bed, 20" Swing inside Guards, 41" Clearance, 16" Grinding Stroke, New 1976.

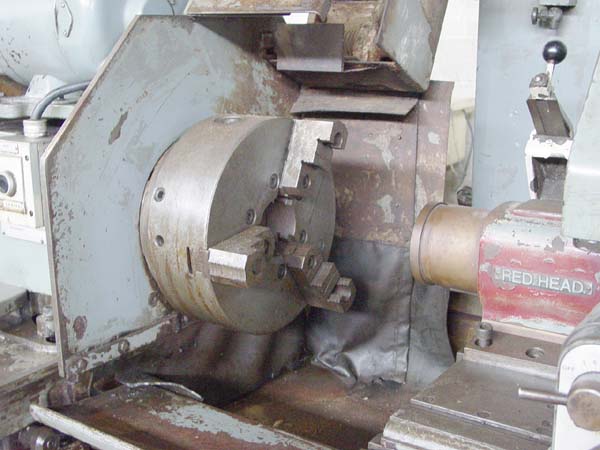

Facing Attachment, Workhead Angular Setting Device, Workhead Positioning Stop, Sine Bar Swivel Attachment with Indicator, Extended Base with 12" Bridge Adjustment, Redhead Spindle, 12" 3-Jaw Chuck, Variable Speed Workhead, Swing Down Wheel Dresser, Coolant Pump and Tank.

SPECIFICATIONS:
Swing Over Table, Maximum.............................. 24-1/2"
Swing Inside Coolant Splash Guard, Maximum............. 20"
Table Longitudinal Travel.............................. 20"
Table Longitudinal Feeds, Variable..................... 0-18 FPM
Grinding Stroke, Maximum............................... 16"
Wheelhead Cross-Sliding Travel......................... 1-1/2"
Angular Adjustmant of Workhead......................... 90 Degrees
Maximum Clearance Cross Slide Face to Spindle Flange .. 41"
Workhead Logitudinal Travel............................ 12"
Workhead Cross Travel.................................. 17"
Workhead Speeds, Variable.............................. 0-500 RPM
Wheelhead Motor, Horsepower............................ 5 HP
Workhead Motor, Horsepower............................. 1-1/2 HP
Hydraulic Motor, Horsepower............................ 1/2 HP
Coolant Motor, Horsepower.............................. 1/4 HP
Approximate Machine Dimensions......................... 91"x96"
Approximate Machine Height............................. 75"
Approximate Machine Weight............................. 7,000 LBS

CONDITION: Machine Appears to be in Excellent Condition!

Max Swing Over Table24.5"622.3 mm
Max Swing Inside Coolant Splash Guard20"508 mm
Max Grinding Stroke16"406.4 mm
X-Axis (Longitudinal Table Travel)20"508 mm
X-Axis Feed Rate0-18 FPM5.5 m/min.
Wheelhead Cross-Sliding Travel1.5"38.1 mm
Workhead Swivel Range90°90°
Max Clearance Cross Slide Face to Spindle Flange41"1,041.4 mm
Workhead Longitudinal Travel12"304.8 mm
Workhead Cross Travel17"431.8 mm
Max Workhead Speed500 RPM500 RPM
Min Workhead Speed0 RPM0 RPM
Wheelhead Grinding Spindle Motor Power5 hp3.7 kW
Workhead Motor Power1.5 hp1.1 kW
Hydraulic Motor Power0.5 hp0.4 kW
Coolant Pump Power0.2 hp0.2 kW
DresserYesYes
Dimensions91" x 96" x 75"91" x 96" x 75"
Weight7,000 LBS7,000 LBS
