SUPERMAX YCM TC-15 CNC TURNING CENTER

Stock #: P12315

Brand: SUPERMAX
Model: YCM TC-15
Type: Lathes, CNC
Condition: Excellent
Year: 2000

Equipped With:

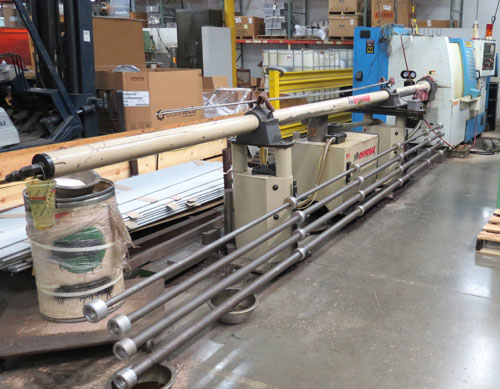

Fanuc 0T CNC Control, Multiple Part Program Storage, 12' Lexair Inc Rhinobar Barfeeder, RS232 Port, 8" 3-Jaw Chuck, 12 Position Tool Turret, All Fanuc Drives and Motors, Tailstock, Chip Conveyor and Coolant System.

SPECIFICATIONS:
Max Swing Over Bed...................................... 18.9"
Max Swing Over Carriage................................. 12.2"
Max Turning Diameter.................................... 9.8"
Max Tailstock Position.................................. 18.4"
Standard Chuck Size..................................... 8"
Cross Travel (X-Axis)................................... 9.8"
Longitudinal Travel (Z-Axis)............................ 19.7"
Feed Range (Infinitely Variable)........................ .1-394 IPM
Rapid Traverse Rate (X-Axis)............................ 394 IPM
Rapid Traverse Rate (Z-Axis)............................ 787 IPM
Number of Turrets....................................... 1
Tool Positions.......................................... 12 Total
Bar Capacity............................................ 1.77"
Spindle Nose............................................ A2-6
Spindle Speed Range (1 RPM Increments).................. 45-6000 RPM
Spindle Horsepower...................................... 15 HP
Electrics............................................... 220/3/60
Approximate Machine Dimensions (without Barfeeder)...... 130" x 60"
Approximate Machine Height.............................. 73"
Approximate Machine Weight.............................. 7600 LBS

CONDITION: Machine Appears to be in Excellent Condition !
