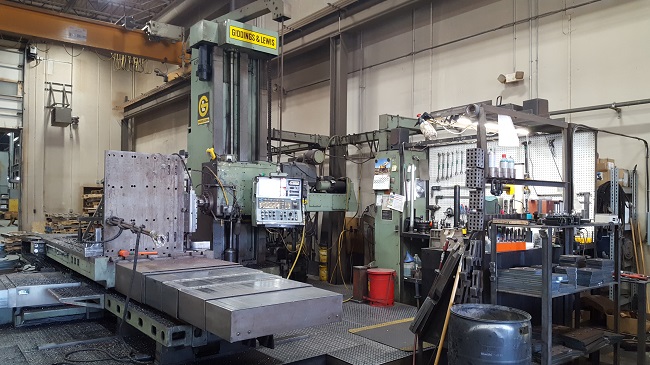

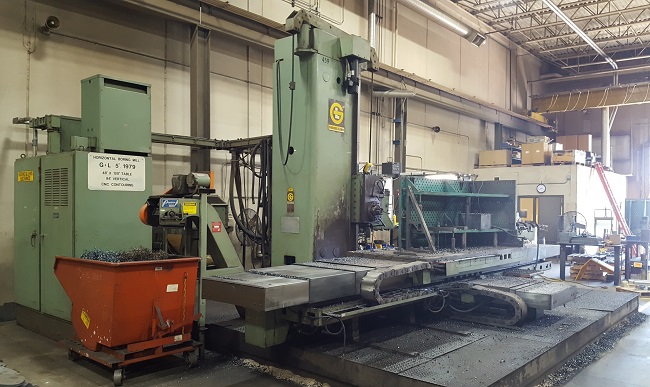

5" GIDDINGS & LEWIS TABLE TYPE HORIZONTAL BORING MILL

Stock #: Q10383

Brand: GIDDINGS & LEWIS
Model: G-50-T
Type: Boring Mills, Horizontal, Table Type
Condition: Very Good
Year: 1979

Equipped With:


G & L 8000-B CNC Control, Vertical Adjustable Control, Circular/Linear Interpolation, Preload Part Reference, Tape Punch Interface Plug, Chip Conveyor.

Specifications:

CNC Control yes
Type of CNC Control G & L 8000-B CNC Control
Table Size 48" x 120"
Table Load Capacity 35,000 LBS
X-Axis (Table Cross Travel) 120"
Y-Axis (Vertical Travel ) 84"
Z-Axis (Spindle (Quill) Travel) 32"
W-Axis (Column Longitudinal Travel) 42"
Rapid Traverse Rate (X,Y& W) 300 IPM
Spindle Diameter 5"
Spindle Taper 50 ANS
Spindle Horsepower 40 HP
Spindle Speed Range 5 to 1120 RPM
Approximate Machine Weight 78,000 LBS
CONDITION:  This Machine is in a Plant, Under Power, and Appears to be in Very Good Condition! X & Y-Axis Motors rebuilt 4 years ago.
