CINCINNATI 10HC1500 CNC HORIZONTAL MACHINING CENTER

Stock #: Q10151

Brand: CINCINNATI
Model: 10HC1500
Type: Machining Centers, Horizontal
Condition: Very Good
Year: 2007

Equipped With:

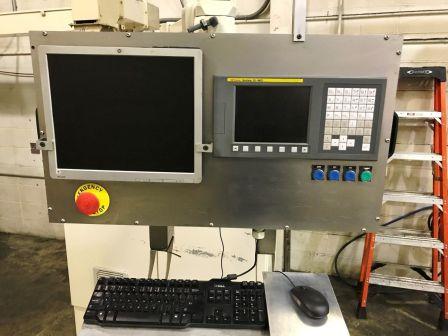

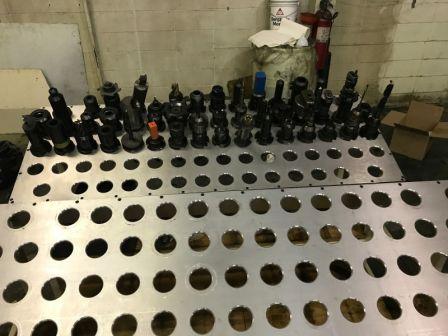

GE Fanuc 0i CNC Control, Wired for B-Axis, 30-Position Automatic Tool Changer, Toolholder Package Included, Rigid Tap, Coolant Tank.

* 2007 Retrofit CNC Control and All Axis Motors*

SPECIFICATIONS:
# Axis.................................... 3
Table Size............................................ 31" x 64"
Table Load Capacity .................................. 5000 LBS
X-Axis Travel ........................................ 100"
Y-Axis Travel ........................................ 40"
Z-Axis Travel ........................................ 26"
Min Spindle Nose to Table,....................... 5-3/8"
Max Spindle Nose to Table,....................... 35-3/8"
Spindle Speed, Range ................................. 20 - 4,000 RPM
Spindle Speed, Increments............................. 1 RPM
Spindle Taper ........................................ #45 CAT
Spindle Power........................................ 14.75 HP
Tool Storage Capacity ................................ 30 Tools
Electrics ............................................ 230/460/3/60
Floor Space Required ................................. 191" x 205"
Machine Height ....................................... 144"
Approximate Weight ................................... 24,000 LBS

CONDITION: This Machine Appears to in be Very Good Condition!
