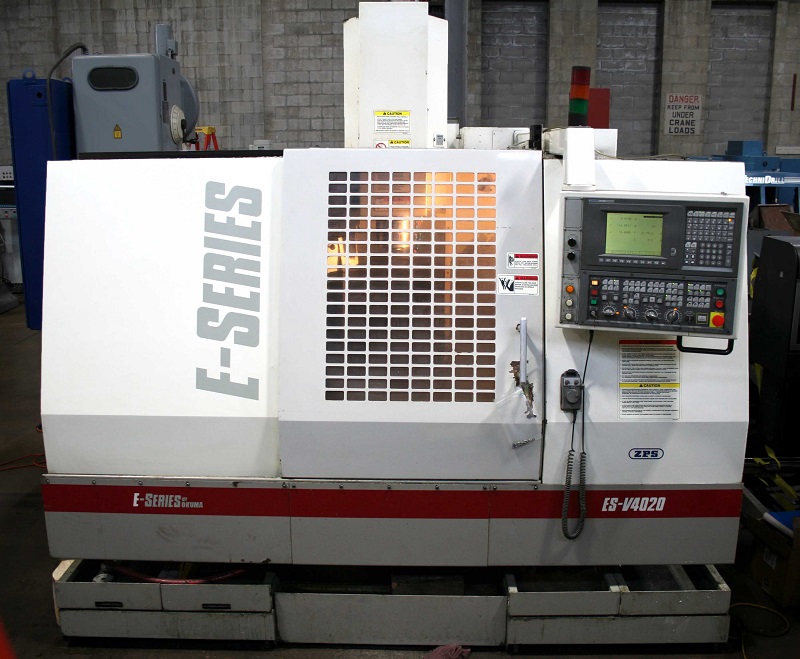

OKUMA ES-V4020 CNC VERTICAL MACHINING CENTER

Stock #: Q10237

Brand: OKUMA
Model: ES-V4020
Type: Machining Centers, Vertical
Condition: Excellent
Year: 2002

Equipped With:


OSP U10M CNC Control, RS 232 Port / Floppy Drive, Inch Metric Programming, DNC-DT (Drop Feeding), (4) Additional M-Codes, (20) Work Coordinate Offsets, 20 Position Automatic Tool Changer, Shower Coolant System, Spindle Chiller, Full Enclosure.

SPECIFICATIONS:

CNC Control……………. OSP U10M CNC<br>
# Axis……………… 3<br>
Table-L............................. 47"<br>
Table-W............................. 20"<br>
Max Table Load Capacity........................... 1,500 LBS<br>
Longitudinal Travel (X-Axis)...................... 40"<br>
Cross Travel (Y-Axis)............................. 20"<br>
Vertical Travel (Z-Axis).......................... 20"<br>
Rapid Traverse Rate (X and Y Axes)................ 941 IPM<br>
Rapid Traverse Rate (Z Axis)...................... 941 IPM<br>
Max Clearance Tabletop to Spindle Nose............ 28.6"<br>
Min Clearance Tabletop to Spindle Nose............ 7.8"<br>
Spindle Speeds Range.............................. 50 – 8,000 RPM<br>
Spindle Taper..................................... CAT-40<br>
Spindle .......................................... 15 HP <br>
Automatic Tool Changer Capacity (ATC)............................. 20<br>
Approximate Machine Dimensions................. 110" x 90" x 117"<br>
Approximate Machine Weight........................ 8,800 LBS


CONDITION: This Machine Appears to be in Excellent Condition !
