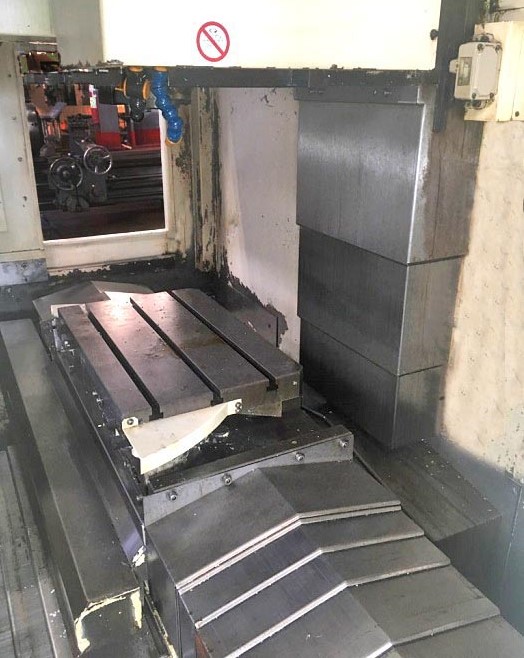

Fanuc 16i-MB CNC Control, (2) 14 x 22" Pallets Sparkchanger (Built-in Pallet Changer), 30 Station Automatic Tool Changer, 15000 RPM Max Spindle Speed, Chip Conveyor, Coolant System.
SPECIFICATIONS:

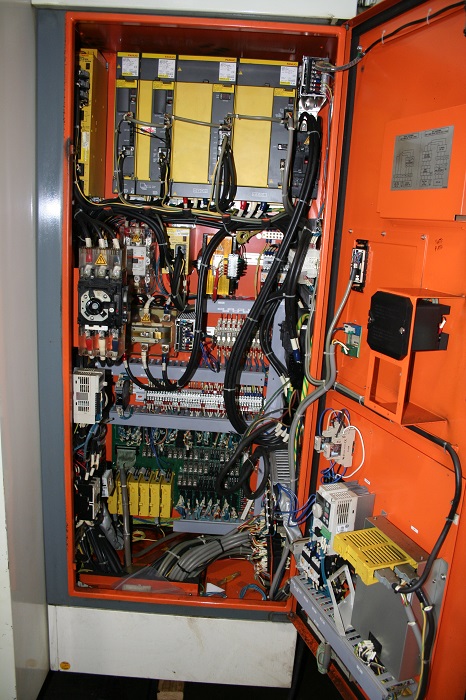

CNC Control……………. Fanuc 16i-MB CNC
# Axis……………… 3
Table-L..................................... 24"
Table-W..................................... 16"
Max Table Load Capacity Per Side.............................. 220 LBS
Workpiece Change Setup.................................... 0°/180°
Workpiece Change Time..................................... 2.9 Sec approx.
Longitudinal Travel (X-Axis).............................. 20"
Cross Travel (Y-Axis)..................................... 14"
Vertical Travel (Z-Axis).................................. 18"
Max Clearance Tabletop to Spindle Nose.................... 20.4"
Min Clearance Tabletop to Spindle Nose.................... 2.3"
Rapid Traverse Rate (X&Y Axes)............................ 1969 IPM
Spindle Power........................................ 10/7.5 HP
Max Spindle Speed......................................... 15,000 RPM
Spindle Taper............................................. NST-30
Automatic Tool Changer Capacity (ATC)................ 30
Approximate Machine Dimensions.................... 130" x 138" x 122"
Approximate Machine Weight................................ 15,900 LBS
