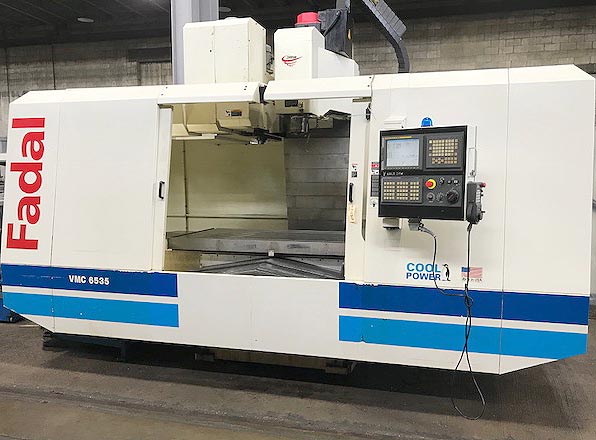

FADAL VMC6535 CNC VERTICAL MACHINING CENTER

Stock #: K15309

Brand: FADAL
Model: VMC6535/50
Type: Machining Centers, Vertical
Condition: Excellent
Year: 2006

Equipped With:


Fanuc 18i-MB5 CNC Control, Helical Interpolation, Coordinate Scaling, Inch or Metric Programming, Rigid Tapping, Arranged for Probe, 32 Station Automatic Tool Changer, Metal Way Covers, Work Light, Chip Conveyor, Coolant Thru the Spindle, Coolant System.

Specifications:

CNC Control yes

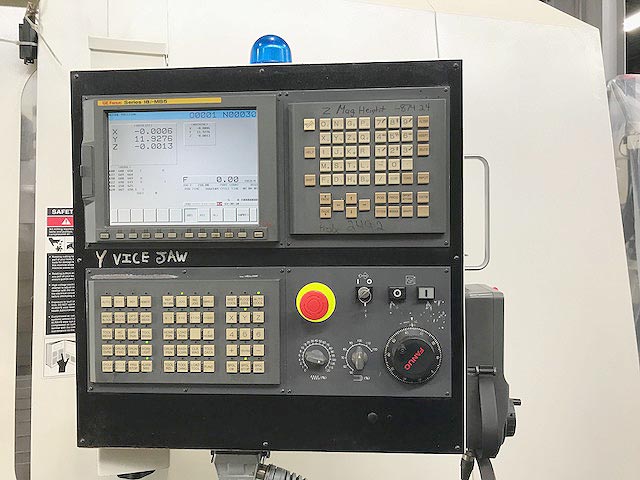

Type of CNC Control Fanuc 18i-MB5 CNC Control
# Axis 3

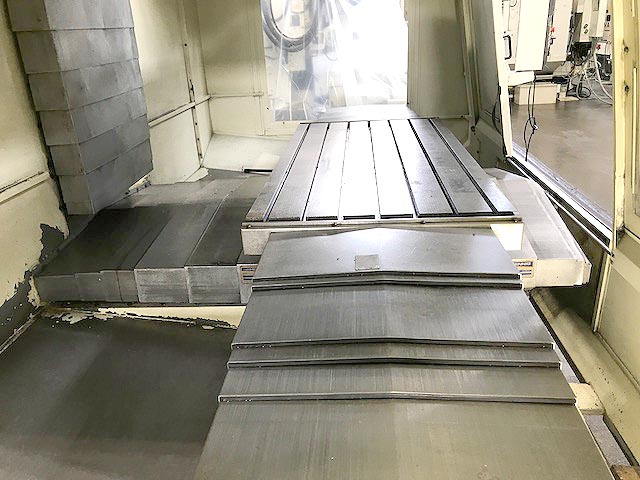

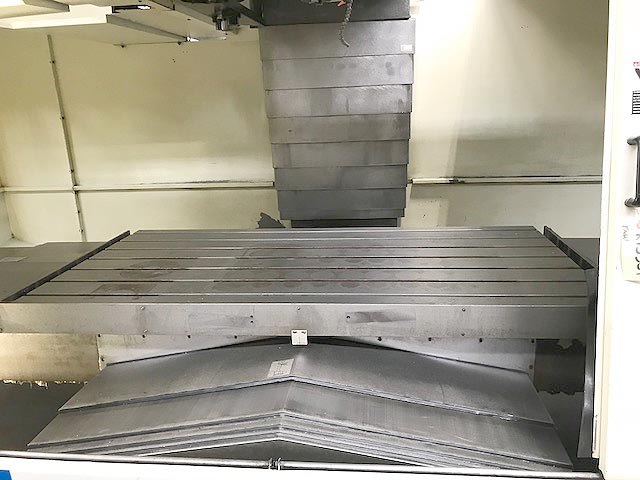

Table Working Surface 75" x 35"
Table Load Capacity 4,250 LBS
X-Axis (Longitudinal Travel) 65"
Y-Axis (Cross Travel) 35"
Z-Axis (Vertical Travel) 31"
Max/Min Clearance Table Top to Spindle Nose 33.5"
X-Axis Rapid Traverse Rate 900 IPM
Y-Axis Rapid Traverse Rate 900 IPM
Z-Axis Rapid Traverse Rate 700 IPM
Spindle Horsepower 25 HP
Spindle Speed Range 0 - 7,500 RPM
Spindle Taper No. 50 (BT-Flange)
Coolant Thru Spindle yes
Automatic Tool Changer Capacity (ATC) 32
Approximate Machine Dimensions 192" x 120"
Approximate Machine Height 120"
Approximate Machine Weight 32,000 LBS
CONDITION: This Machine Appears to be in Excellent Condition!
