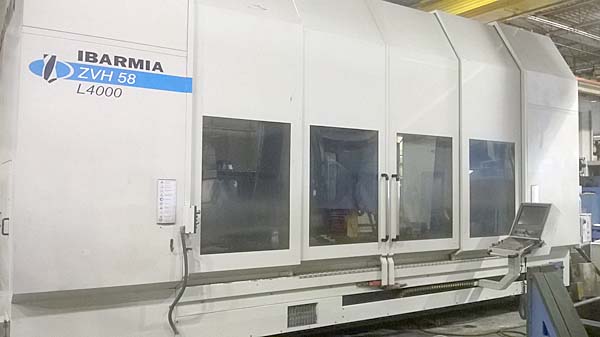

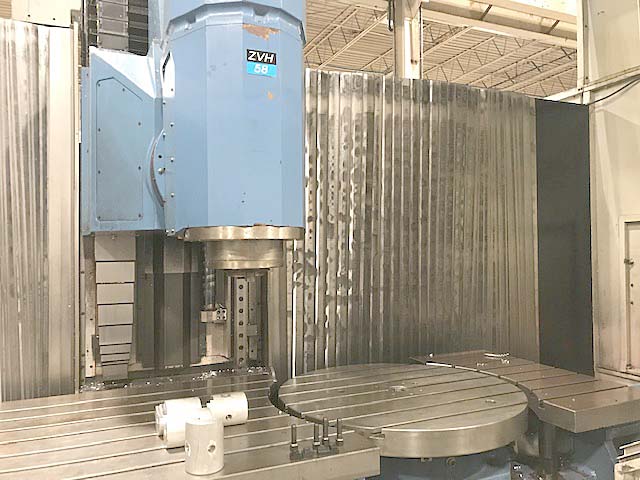

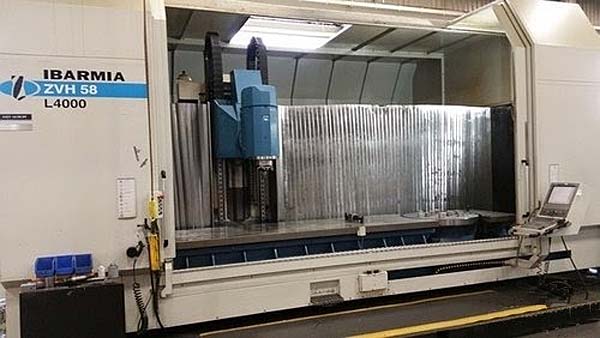

IBARMIA TRAVELING COLUMN 5X VERTICAL MACHINING CENTER

Stock #: K15776

Brand: IBARMIA
Model: ZVH58L4000
Type: Machining Centers, Vertical, (5-Axis or More)
Condition: Excellent
Year: 2009

Equipped With:


Heidenhain iTNC530 CNC Control, Heidenhain Scale Feedback, Multiple Part Program Storage, RS-232 and Ethernet Port, Star Roller Guide axes bearings, Full machine guarding including roof 40 Station Automatic Tool Changer, Heavy Duty 50 HP Cat-50 Spindle, Divider wall with interlocks for 2 station pendulum machining, Coolant thru spindle (360 PSI) with filtration system, Complete documentation.

Specifications:

CNC Control yes
Type of CNC Control Heidenhain iTNC530 CNC Control
Rotary Table Size 39.4"
Rotary Table Load Capacity 5500 LBS
Fixed Table Size 41.3" x 180"
Fixed Table Load Capacity 8000 LBS
X-Axis (Longitudinal Travel) 157"
Y-Axis (Cross Travel) 39.4"
Z-Axis (Vertical Travel) 33.9"
A-Axis (Trunnion Tilt Range) (±25 Deg) +\- 120 DEG
B-Axis (Spindle Head Swivel)(±25 Deg) 360 DEG
Rapid Traverse Rate (X, Y, & Z Axis) 1200 IPM
Spindle Horsepower 50 HP
Spindle Speeds Range Main 6000 RPM
Spindle Taper CAT #50
Automatic Tool Changer Capacity (ATC) 40
CONDITION: From High Precision Shop Doing Government Work.  Appears to be in Excellent Condition.
